In a bit of a quandary. I took my new frame in to the nice guys at the local independent bike shop to have the BB threads chased-through pre-build. Standard practice.
Seems the sides were slightly out of line and they've stripped the non-drive side...
They can get a BB which screws together, but they're expensive (my cost implied) and I've a new one at home that is now not needed. And a new frame that is now permanently damaged (although potentially was a QC fail at the factory? Who knows)
I don't wish to fall out with the shop, but what do I do?
Ta
They've written the frame off haven't they? Id expect a new frame.
This is what they (should) have liability insurance for. I’d be well peaved and would want the frame replacing.
Some half-cock bottom bracket is going to cost you more whilever you own the frame.
They ****ed it, they fix it. There were already threads cut into the frame, so it’s been proven that it can be done.
I’m struggling to get my head around how they’ve managed to strip threads when they were supposed to be cutting them
I'd expect a replacement frame. Even if they'd shell out (pun intended) themselves for a screw together bottom bracket, that'd make any future replacements really annoying and possibly limit crankset choices. Also I'd find it heartbreaking to live with a brand new frame that had a bodge to start with.
It should be replaced at their cost. If they're even slightly hesitant at that it would be the last time id use that place as I can't even work out how they'd strip the threads when chasing them.
A well known frame builders damaged my frame after respraying it. It was an Alloy Colnago with fluted tubing, and they managed to crush the top tube fluting slightly.
I got a new frame from them.
as I can’t even work out how they’d strip the threads when chasing them.
I can, especially if they have a high quality(sharp) tap and duff threads to start.
Hmm unlikely I'll get a new frame as it's a nukeproof...and yes it will feel a bit bodged (although the Enduro bearings version would be ok possibly) which is gutting long-term.
I don't want to fall out with the shop, and hate conflict/bad feelings. The irony is that I've spent the past 7yrs on a bike with pressfit BB and not had any bother at all...and that's with me fitting them.
Cheers for the support, let's see what happens. I've just applied the invisiframe stuff too🤦🏼
I don’t want to fall out with the shop
Um, because of the wonderful service they give you where they ruin a new frame and then expect you to pay for a workaround for the problem?
Yeah sod that. They will have liability insurance, if they're professional it doesn't need to be an unpleasant discussion. They should want to keep you as a customer. If they can't get a new frame they should pay you the value of the frame. Even that is a bit rubbish as I guess you got the nukeproof at a massive discount in the firesale so you'd not be able to get an equivalent. If they mess about this is what small claims court is good for.
I’d expect the shop to put you right - if the solution is an expensive screw-together BB, then they can supply and install one at their cost. If they don’t agree, then they can supply you with a replacement frame at their cost.
if the solution is an expensive screw-together BB, then they can supply and install one at their cost.
If I were willing to entertain a screw together bottom bracket, I'd want that, and some compensation on top.
Just replaced a Miche BB with a Shimano in my alloy Dolan. I cannot tell you how many times I checked the alignment of the NDS before ramping up the torque. Even slightly amis and those threads are toast. If you don’t love the frame, I’d take their fix. But resale the frame is now worthless. Of course the same is true of the manufacturer.
nukeproof
Could be replaceable if its one of the ones that's on the cheap list that the ex crc chap is selling as per this thread?
https://singletrackmag.com/forum/topic/possible-demise-of-crc-wiggle/page/45/
(Skip to page 45)
They can't be that nice if they're not sorting something out for you.
All may not be lost, I've salvaged BB threads that others (including manufacturers) have ****ed with a pair of these:
Clean out any bits off sticking out tube that may get in the way with a grinder. Check the faces are perpendicular and parallel, and correct with a file. Then insert the tool and proceed slowly and carefully checking with a set square as you go.
I there's not enough metal left add braze which obviously will end up with a partial repaint.
But if it's new and they've ****ed it they should replace it.
There are only two lbs around here and I've had bad experiences with them both. The positive has been that it made me get (almost) all the tools and experience I need to fix my own bikes over the years.
I'm like you op, hate conflict and try to avoid it all all costs but even I wouldn't be happy with them damaging a frame and expecting you to bail them out.
Id be pressing them to make good the damage at their cost as a minimum and never go back to them again. Not due to the damage as such (these things can happen) but trying to shift the cost onto you. That's not on and id never give them my money again.
Hope you get it resolved either way mate 👍
All may not be lost, I’ve salvaged BB threads that others (including manufacturers) have **** with a pair of these
Telling us what they're called might help us google for them
Depending on the amount & type of material around the bb shell they might be able to ream & sleeve it.
Scroll down to thread repairs.
https://argoscycles.com/resprays-refurb/price-lists/
Tarauds de boiter de pédalier Eldi. 😉
Which I Googled and got this:
The pair are probably more than our OP's frame cost.
I'm trying to work out how they're better than a normal tap set. Does the extended section centre it better in the shell?
anderzz
Free Member
Sorry what is this you had done?Every bike I’ve built I’ve just took the frame out of the box and screwed a bottom bracket into it. (or pressed if push fit).
Surely they are shipped ready to be built?
Me too but I know that a lot of people consider it good practice to have this done before a build. Different strokes and all that...
Yeah, I've never had to chase the threads of a brand new frame - or even most used frames. Maybe it was unnecessary, but it's still the shops fault.
Praxis works BB that screws together inside the BB shell is a very good bit of kit.
i ran one in a surly trucker with a stripped BB shell, for about 4 years, no problem.
Do they not have a BB tap tool? If you're in or around Exeter then I know at least one place that can help.
Is that tool not exactly what the shop used in the first place?
Given it's a a taper tap . It should be - if they were following machining principals
Often though the shop will be too cheap to buy a taper tap set and will buy a considerably cheaper thread chaser which doesn't have the lead in of a taper tap -which is fine for 90% of these kinds of jobs a shop will see - it's meant for cleaning out swarf/corrosion/paint /nipped threads in a good thread form. If the threads misformed high chance you'll only make it worse with a chaser
Does the extended section centre it better in the shell?
Yes.
Surely they are shipped ready to be built?
Some manufacturers send out perfect frames and some do not. I've never had to reach for taps when building up Look, Specialised, Giant, Lapierre... But some manufacturers send out frames that require work before they can be built up. And some manufacturers build up complete bikes with cross-threaded BBs among other horrors. The latest I've put right was a Brompton of my own. When I came to replace the BB I took the plastic cupped BB out (with difficulty) and found the aluminium-cupped BBUN72 wouldn't go in because the drive side thread wasn't in line. The above tool allowed me to correct it.
I had a policy of if it was fixable I fixed it before sale and only sent stuff back to distributors/manufacturers if it obviously wasn't going to be fixable or the fix would degrade the product. It was easier, cheaper and faster than sending stuff back.
In the case of the OPs frame it could have been Nukeproof who cut duff threads or the lbs that buggered perfectly good threads trying to chase them.
Do they not have a BB tap tool?
I mean, that's presumably what they've used to chase the threads. I can't think of another way a bike shop would do it. If you've somehow managed to completely misalign the tap, and then hamfistedly proceeded to crossthread it in, I think those threads are beyond saving.
Thanks for all the comments.
Yes I always have BBs chased through on new frames as a precaution to problems down the line with poor alignment...and seems to have caught me out at the start which is a first for me. Usually have them faced too but on this occasion it wasn't needed.
I'm not naming the shop as I genuinely believe this to be poor thread alignment and a frame made of chod. They have been apologetic and generally deal with high end kit and elite riders, so isn't from lack of experience. Doesn't give me much confidence in the rest of the frame though...
I don't think I want another Nukeproof even if one was available, so the option is a praxis or equivalent BB, or try and find another Enduro frame that will fit the shock and the pile of new parts I've accumulated...
I'll know more in the week, but does look like I'll be riding on the old bike tomorrow (thank goodness I've still got it!)
Cheers

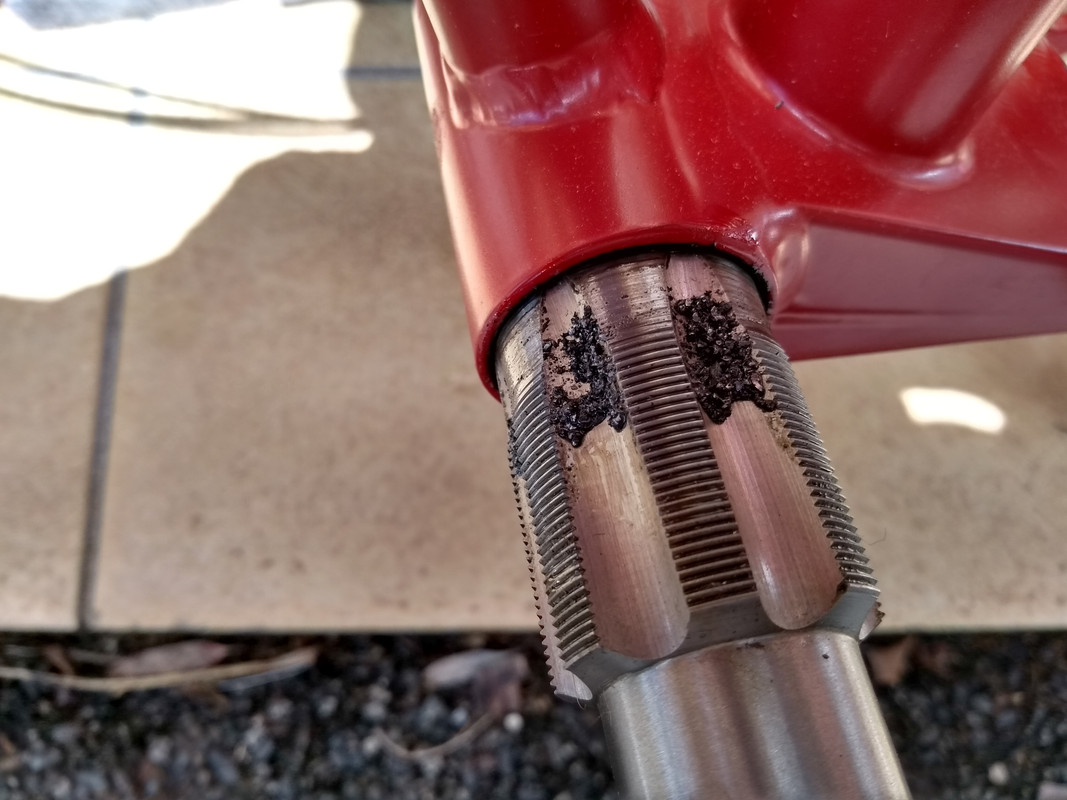

An example of a badly alligned thread it was impossible to screw a metal-cupped BBUN72 into:
I reckoned it could be corrected with the above tap without loss of strength so did so, it's fine now.
Without too much loss of metal.
You seem to be quick to assume the frame was the issue and the shop less so. But you’ve zero proof the frame was in way the problem.
Doesn’t need be a fall out with shop. Just have the chat with them making clear it was a brand new frame which they’ve responsibility for. Unless they can prove you or frame at fault (can’t see how they could) it’s their responsibility. No need to argue your only question is how are they going to sort you out.
Unless they can prove you or frame at fault (can’t see how they could) it’s their responsibility.
If it was me, and it was a brand new frame, I'd be really dubious if there was any resistance at all putting the taps in. I'd stop and check after a couple of threads, not just keep on forcing it through.
Yes, Aidy. It's obvious really quickly if there's something amiss. It's then a question of how amiss and whether there will be enough thread left if you continue. If in doubt send it back rather than try and fail.
If you're putting in a Shimano or sram crank, does it actually matter if the BB can be done up tight (assuming there's no play when it's mounted with the cranks)? The crank will stop it coming undone anyway.
The shop that caused the damage is under obligation to make good on their incompetence. Because even if they fit a push fit BB, the damage is still there and you'll always be reminded of it.
Tell them straight to replace the frame or its small claims court.
You are owed a frame but it's impossible to say who did the damage. In a normal situation the shop would point you in the direction of pursuing a warranty, but it doesn't sound like this in an option.
The thing is.....if a bottom bracket is in perfect condition, I don't know how a BB chasing tool can wreck a frame due to the way the tool locks together. They are pretty idiot proof unless one puts the tool in the wrong way around! Some are not labelled so you have to look carefully at the threads (which is really dumb). The tool is also only really designed to clean the threads and get rid of small imperfections, not magically make a wrecked BB shell perfect again.
So if the frame was dead from the factory, the tool could potentially make it more dead than a Monty Python Parrot. Which sucks for the shop who innocently took on the job. Maybe the mechanic was too gung-ho and thought by forcing the tool, it would make everything right. Doesn't change the fact that the frame was probably faulty and not fit for use in the first place.
I'd be going after 'Nukeproof' more than the shop but I'm guessing that you can't.
The shop has messed up.
Why force the cut when meeting resistance. Always go slow at first when chasing threads.
Sorry that you're going through this matey but the shop needs to make good.
Not your fault
People seem very keen to blame the shop rather than Nuke proof. BB shells are cast, pressed or machined then brazed into the frame. That's when the first errors occur:
Check whether you chainrings are perfectly parallel to the top, down and seat tubes. Some of you may be disappointed, some may be so bad you realise you're pedalling at an angle and your chain line is shit.
Next the frame builder puts the frame on a flat surface and starts measuring and finds something isn't right. So they start "cold setting" which just means hauling on the thing to get everything in line and where it should be. During this exercise the weakest points yield, sometimes that's the BB shell which means the shell is no longer a tube with parallel walls.
Next comes cleaning up with a file and threading the BB which if the shell is already distorted isn't going to be easy or satisfactory. The tapping set will be of varying quality and rigidity, and with varying amounts of play between the parts. Add the competance of the frame builder to the equation. Some frame builders screw up due to incompetance and/or crap tools.
Duff BB allignment and/or threading was the most common frame defect I saw. Others included fork blades not parallel to the steerer, head and seat tubes not parallel, dropouts needing a file to centre the wheels...
I checked everything as I went through builds correcting minor issues as I went and rejecting anything too far out to correct. When the bike was finished I eyed up the bike from front, back and above to check everything was visually OK then took it for a spin to check it pedalled and rode straight hands off.
I like carbon bike frames. 😉
I'd say the shop should have started the job cautiously and the moment it looked like the frame was not right (assuming the frame had a fault) stopped and contacted you before proceeding.
No help now but I'd say the whole thing was unnecessary. 20 odd years ago (maybe more now) when external BBs were first a thing it was perceived they needed improved tolerances and frames manufactured for older internal BBs might not be manufactured to high enough tolerances. Particularly facing. So the habit grew in getting them done again locally prior to first building up though in reality I'm not sure it made much odds. I'd say for the last 15 years or more if you've been getting this done it's largely been an exercise is subsidising your LBS. And as said above - if it's not broken, don't fix it. LBS "mechanics" are not engineers - the **** up to success ratio is way too average to give them more work to do than absolutely necessary. Would I trust a lbs monkey over a manufacture facility - nope. And I'm cytech trained myself. To be honest I'd rather trust the lads I teach who do a day release to do an engineering apprenticeship to do the job over a bike shop mechanic. And given the other 4 days a week I rarely trust them to tie their own shoe laces I think that something about my thoughts on Cytech standards.....
Chase the bloody threads out.
You need to decide what is a good outcome for you and then work towards that.
Working off the assumptions and info in the thread. I'd probably go for the bodge BB option but look to see if you can find one where the bearings can be replaced without removing the shell (problem solver?). This means it will work.
Your frame is now worthless, no one is going to buy it second hand. I'd expect some financial compensation for that.
I'd open negotiations with "I'd like you to replace the frame you broke".
I'm not sure why you use and insulting term "lbs monkey" for the people who deal direct with clients and get it in the neck from both boss and clients if they fail but have faith in manufacturing facilities which usually have a heap of misalligned frames out the back to prove how often they **** up. Some manufacturers have very high quality control standards, I've named some. Some are not so rigorous. I've sometimes wondered what's happened to frames I rejected and sent back, probably sold to another customer/lbs given the attitude of distributors... .
We don't have pics but on what the OP has stated the most probable IME is:
The frame was tapped slightly off cock by the manufacturer. The lbs ran a tap through which removed so much metal from the threads they ended up effectively stripped. To confirm we'd need photos of the threads and the tool used.
I’m curious as to what happened when you turned up to the shop to collect the frame (or received the news if you haven’t collected it yet).
did they just say ‘bb is chewed up mate, soz’ and handed it back/suggest it’s ready to collect?
or did they explain the issue and start talking solutions?
Take the screw together bb assuming they pay. Then forget about it and enjoy the new bike.
It'll be fun to ride and certainly not worthless. Don't overthink stuff.
LBS monkey.....because I've been trained alongside some, who tbh probably needed opposable thumb training prior to starting the course (honestly I was shocked, clearly these were people at the early stages of their career but you'd have thought you'd have some sort of aptitude to want to start on that journey) and have witnessed plenty of their best work over the years. Clearly dissing a whole profession does a disservice to a whole swathe of gooduns. And there are plenty of of mechanically useless members of the public who need their help or are just not into cycling enough or are not sad/geeky/obsessive enough to own their own tools who are better off using one than doing it themselves. But collectively......unless you are truly lazy AND know of a good one, it's something I'd generally suggest most avoid.
Yes manufacturers **** up. Some of that pile will be QC rejects before they leave the factory but yes some will be warranty returns. Either way - would I trust a factory with a bespoke tap and chasing station with jigs setup which do 10s or 100s a day over a Cytech mechanic doing one every now and again between mending punctures...every day of the week.
I've worked in a bike shop and we dented someone's frame once trying to remove a stuck seatpost.
The frame was no longer available from the manufacturer. The shop, at its own expense, replaced it with an alternative frame that was slightly better.
We weren't even a shop renowned for customer service, the reputation was actually not great. But the boss knew we had no option but to replace the frame. That's the minimum you should expect. If they can't get you a new Nukeproof they should get you an equivalent spec frame from another manufacturer.
Goodness there are a lot of wild assumptions on this.
There is a lot of talk relating to steel frames (brazing, bad heat misalignment, brutal cold setting etc) but a Nukeproof will be aluminium or carbon.
Aluminium cold setting is usually done before heat treatment so doesn't need a lot of force.
Nobody knows if the BB threads even had any problem to begin with - did anyone actually try a BB in it?
The op is most likely to have been wanting to use an external cup BB. The most critical thing with these is parallel outer faces. Any bad concentric misalignment isn't going to be fixed by a wondertap, and you will just end up with loose threads.
But yes for whatever reason the bike shop has screwed up and the only practical fix is a screw together BB at their cost. If the frame did have an initial alignment problem, then this is probably better aligned than whatever fix could have been achieved by tapping and facing anyway.
I'd be disappointed they haven’t offered to sort it using their insurance (which they should have).
It is more their error than yours and it is less cost, spread across a bigger entity, for them to sort it.
Just handing it back to you and explaining what your next course of action and cost to you needs to be is poor on their part.
Besides which - if they are a supposedly good LBS then they really should be staffed with people who actually know what they are doing. Anything as fundamental as threads cut direct into the customers frame = the second you feel any resistant when tapping the thread, you stop.
Aluminium cold setting is usually done before heat treatment so doesn’t need a lot of force.
All the easier to distort the BB shell.
I don’t wish to fall out with the shop, but what do I do?
Why, are they your friends? Or just a "friendly" local bike shop you give custom to? Let them fit this expensive bottom bracket in the frame they've just knackered and think of England as your pants are pulled down. In fact, take them a pack of biscuits once done to keep them sweet.
I'd be absolutely raving if a bike shop had stripped the threads on a brand new frame.
Doesn't matter about the technical reasons why this task failed - the OP is a lay person and took it to a professional 3rd party.
They failed the task and need to right the wrong - that's probably more the direction of this discussion.
I didn’t know this was even a thing- I’ve always just screwed the bottom bracket in myself without much care.
Seems the sides were slightly out of line and they’ve stripped the non-drive side…
To my mind any shop that has done this amount of damage - to have gone ahead and permanently ruined a frame by stripping the thread when all they were doing was chasing out a thread (i.e. did not stop when they realised it was going horribly wrong, or even just a suspicion that things weren't right) have more than a fair share of culpability/responsibility, and should be putting it right at their expense.
i.e. they should at least be putting you back in the same place you were before you took it to them
If you’re putting in a Shimano or sram crank, does it actually matter if the BB can be done up tight (assuming there’s no play when it’s mounted with the cranks)?
Yes it does.
The crank will stop it coming undone anyway.
No it won't
Every bike I’ve built I’ve just took the frame out of the box and screwed a bottom bracket into it. (or pressed if push fit).
And every frame i've had through my hands i take a quick minute to check if the faces of the bottom bracket/headset/dropouts/gear hanger/etc are clean (paint and burr free) and square to each other/undamaged. Consequently i've got no scraped seatpins, my gears work perfectly, steering is smooth and unrestricted, wheels drop in smoothly and my bottom brackets last for many many thousands of miles. I've got one on my winter hack MTB that is a decade old and rarely gets cleaned. It's getting a bit graunchy now, might change it for this winter. Maybe, if i get round to it. Road bike ones, i'm not sure how long they last, but i do have a box of perfectly useable cups that i've removed when i've got new ones with replacement cranks.
Surely they are shipped ready to be built?
Yeah, no. Doesn't generally work like that. Some do. Definitely not the majority.
<hr />
Same deal offered, a screw-together BB at reduced rate and support with administrators. As expected, Frasers are not liable should the frame have had any issues when left the factory (misalignment).
Still pushing for them to cover costs, but all turning a bit sour potentially it would seem. Not ideal, but in the grand scheme of things, it's a very first-world problem. And is just yet another life lesson that seems to happen all too frequently.
Tempted to just get it out the way and get it built.
Cheers for support anyway, but there we go. I expect the rear stays will crack next knowing my luck lol...
Think I'll just leave it there. Ter-ra (although if anyone has a spare MegaV4 Medium front triangle floating about let me know)
Just another reason I don't trust my bikes with bike shops.
And we wonder why they keep closing. Even if you are a shop with an excellent mechanic there are so many incompetents around (and previously excellent bike shops can suddenly turn into clown factories if a single key member of staff leaves) that it just isn't worth the risk.
when all they were doing was chasing out a thread
Important point that - they should not have been talking about tapping a thread as all they should've needed was to clean what was already there
What does "support with administrators" mean ?
Buy another equivalent frame and claim the costs from them the small claims procedure.
What does “support with administrators” mean ?
I assume the OP is going to try some sort of warranty claim with the original retailer (CRC/Wiggle) and the shop is going to help with a report that the frame was faulty.
They are no longer in administration though. Wiggle/CRC have gone, they no longer exist.
That ship has sailed and Fraser Group has no reason to honour warranties. Only 'good will' if they are feeling very, very generous.
But this is also the risk you took when buying a cheap frame in the fire-sale. You were basically buying with no warranty.
At the very least the bike shop should put the screw-in BB in free of charge. Every business cocks-up from time to time and you have to rectify your mistakes.
If you bought it on a credit card, you might still have some form of protection?
I still think the bike shop should make good, though.
Depending on the amount & type of material around the bb shell they might be able to ream & sleeve it.
They can't even manage to chase the threads without effing them up and you'd trust them to do this?
But this is also the risk you took when buying a cheap frame in the fire-sale. You were basically buying with no warranty.
At the very least the bike shop should put the screw-in BB in free of charge. Every business cocks-up from time to time and you have to rectify your mistakes.
I'd basically agree with this.
In the circumstances of it being a bargain frame, probably best to be pragmatic and focus on an outcome that will see you using the bike without issue, at no extra cost.
And I'd have thought they'd be too embarrassed to charge for any of the work.
Incidentally - whilst we are talking BB threads and how clean they are...
My usual go-to before any BB cup installation is to run a pick very lightly through the bb thread to feel if there is any notchiness at any point. Obviously if not a new frame, this also cleans out any crap not dealth with by degreaser and a toothbrush - like bits of that red threadlock that Shimano put on some of their BB cups. That stuff can be a PITA as it can get dragged right out into the outermost threads by removing the previous cup. Here it can intefere with the first couple of turns when installing a new cup.
To the OP - I think you are unlikely to get a new frame out of them or a warranty replacement. As a few people have said, a reasonable compromise would be them fitting the screw-together type BB free of charge. I've no idea on compatability or relative cost, but surely they've also cut down on your options for cranksets and BBs going forwards(?) Given this, I would hope they would sort it as best they can and maybe chuck in a spare one of these BBs FOC...?
No it won’t
why not? a shimano setup for example has pinch bolts done up with 14nm of torque. thats enough to stop them budging under crashes, when there's a 175mm long lever pulling in various directions on the interface. A bb shell has almost no lateral ability to move, so if it had no thread on at all, what would the consiquence be? see push-fit bbs
It doesn't matter on the condition of the frame as you presented it - as the professional's in this situation they should have said to you
"this frame is a QC fail due to xxxxx reason and we can't do anything with it".
"Or hi OP - this frame is a bit shit, we can have a go at it but it might bugger it up - do you want us to progress?"
Cracking on knackering it and then telling you it's scrap isn't right. I'd be pushing for a replacement frame of similar type irrespective of how it was when originally presented.
As above. They've ruined it so they should sort it. If they refuse then issue a small claims court claim for the value of the frame.
@5lab I might be wrong but I'm pretty sure the spindle is tapered so if it's not on far enough it's not going to have the correct interface.
Sorry to read the less than positive update mate. Hopefully it's sorted sharpish one way or another though and your out on it in the Spring sunshine.👍
Hi folks,
Just a few updates, no the bike shop aren't friends, yes Frasers have employed administrators to cover the leftovers (and is what I was advised to do by CRC customer services response; they still have a contact) and yes its extremely unlikely anything will come of it; but its worth a try.
Yes i agree that buying from a collapsing company is risky, but the frame wasn't described as being faulty (if indeed it was) so took the view that it has the same warranty as buying second-hand (i.e. none) but without having been used by some random who might otherwise damage it...
I'll seek support advice from Citizens Advice, but to be honest I have much more pressing things going on at the moment so may just take the bikeshop solution and have done. Its not right, but then many things aren't.
Thanks again for all your inputs,
Cheers
Id be tempted to threaten to name and shame the shop on here and other social media unless they give you a better offer than a bodge you are going to have to pay for.
As others have said I wouldn't be in any rush to return to the shop so what have you got to lose really?
Edit to add that i'd be pushing for the argos cycles fix personally
I've only used a BB threading tool a couple of times, but it seems a fool proof process. Thread one side in by hand, then slide the other side along the rod that holds the tool together and feed that in by hand till both are snug to the threads, then turn both handles are the same time(forwards i seem to remember. Bike sat int he stand tilted right back so the bottom of the bb is facing you.
Cut a bit, then back off , a wee spray with some oil and advance the cutters a little more.Back off again, and rinse and repeat. So im a bit unsure how they managed to wreck one side as if its not perfectly lined up the tool wont fit together
It was a park bb tool I got a loan of. Im a rank amateur, though always for the most part done my own servicing, but i'd expect a shop bike mechanic to be very used to doing this kind of thing.
Fool proof. Have a look a the photo of the red frame I posted a page back. That's quite a well-known manufacturer that makes thousands of frames but it's clear in the photo they had two goes on the non-drive side. A first go where they got about 5 turns which was significantly out of line then a second go. It cleaned up fine. On the (other) drive side they'd done it in one go but it was slightly out of line, again it cleaned up fine. I don't know how the manufacturer screwed up but they did so the operation isn't fool proof.
