New patio: How much water pooling to expect?

12 Posts
11 Users
5 Reactions
77 Views
Posts: 1432
Full Member
Topic starter


Got a new patio last week.  It rained yesterday.  And some minor pools of water became visible as it was drying out:

[url= https://i.postimg.cc/SjtKzsrj/20230814-105105.jp g" target="_blank">https://i.postimg.cc/SjtKzsrj/20230814-105105.jp g"/> [/img][/url]

[url= https://i.postimg.cc/0MVyn21W/20230814-105147.jp g" target="_blank">https://i.postimg.cc/0MVyn21W/20230814-105147.jp g"/> [/img][/url]

They're small, so not the easiest to photo well.  And I couldn't measure either but I'd estimate max 2mm deep.

Overall there's a good drop to the patio: I measured 38mm in the first 1.8m away from the house - so more than a 2% gradient.  But a few of the last slabs are fractionally above the one before, where this water is getting caught.  They're porcelain slabs, and I expect something porous would absorb the volumes we're talking about pretty quickly.

I can't say it bothers me too much.  But if I'm supposed to be expecting it to be perfect... then I might have to consider calling them back.



Posted : 15/08/2023 11:25 pm
Posts: 15068
Full Member


Are the slabs actualy on a gradient, or are they 'stepped'?

a few of the last slabs are fractionally above the one before

There may be reason for that, to stop water flowing to the house foundations, but it sounds like the underlaying wasn't quite done/finished properly? But I'm no expert on modern patio laying techniques as I've not been divorced for a while.

Maybe the slabs will settle over time, as the corpse decomposes.



Posted : 15/08/2023 11:36 pm
martinhutch reacted
Posts: 33325
Full Member


Subsidence caused by something buried beneath?



Posted : 16/08/2023 12:15 am
Posts: 1432
Full Member
Topic starter

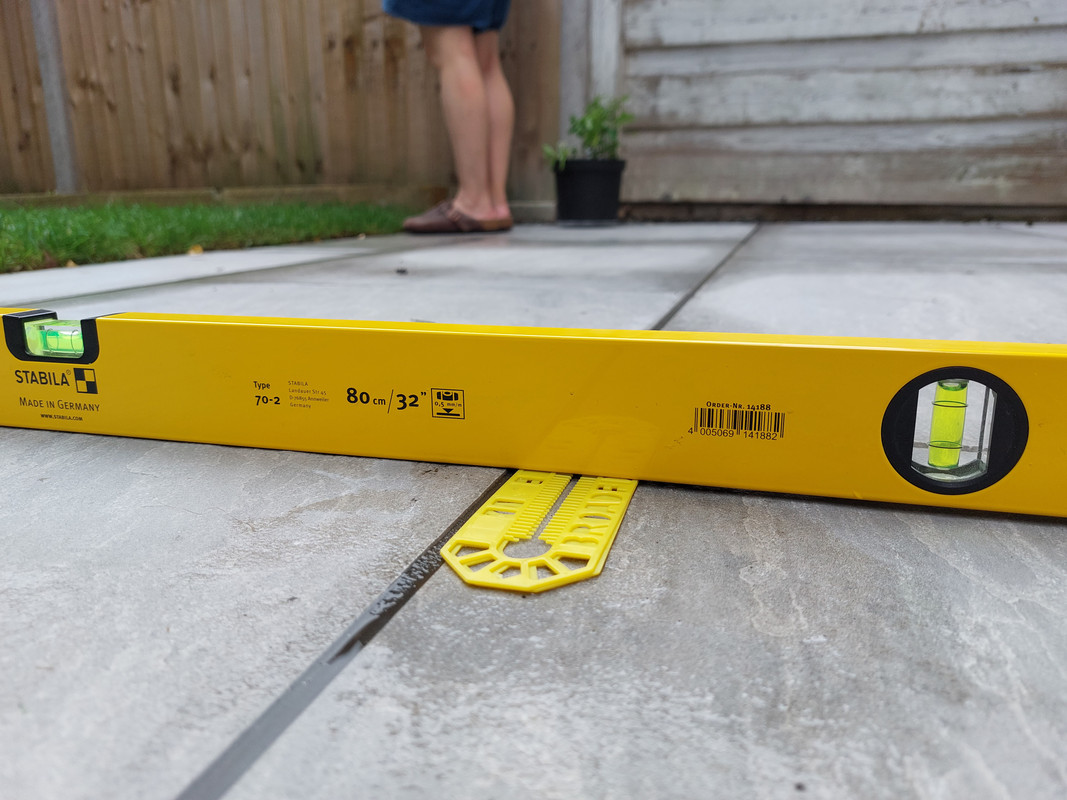

It's raining again so this has caught my attention once more. I measure a 2mm step between the 2nd and 3rd last slabs:

Subsidence caused by something buried beneath?

I suppose never impossible, but unlikely. That first photo was on Monday. The slabs were laid the prior Thursday before being grouted on the Friday - so 4 days max!

Are the slabs actualy on a gradient, or are they ‘stepped’?

They're on a pretty smooth gradient overall, apart from these minor steps in the wrong direction. And the photo is looking away from the house, so they aren't deliberate to prevent any flow-back.



Posted : 18/08/2023 2:20 pm
Posts: 15907
Free Member


In my non educated view I would expect it to naturally drain towards the grass. Some pooling IMO will happen, but thats different to getting a swimming pool when it rains.

However from your pics I cant see a swimming pool type scenario happening in the pics?

If you hose the area down does it all stay on the patio?



Posted : 18/08/2023 2:26 pm
funkynick reacted
 irc
Posts: 5188
Free Member


I would want to lay a straight edge over three rows of slabs across the water from the lawn towards the house. If the slope is even from the first row to the third row other than the pool it would appear the water is pooling where the edge of that slab is a couple of mm low and could be corrected by raising that edge of the slab.

Of course it would have been better if this was  noticed prior to grouting.



Posted : 18/08/2023 7:43 pm
Posts: 299
Free Member


here's the problem with large format tiles in 50% brick layout. Particularly prevalent with cheap chinese tile means Warpage or cupping along the longest length means that you can't avoid lippage in the center.  You could split it and have imperfections at the and joints as well as the center of the longest length but the setter has likely just focused on lippage where they butt on the shortest length. 33% overlap is often a solution



Posted : 18/08/2023 7:57 pm
 jca
Posts: 737
Full Member


Expect it to get worse as the bodies decay...



Posted : 18/08/2023 8:11 pm
Posts: 3588
Full Member


As Dirk above, I was going to ask are the slabs themselves flat? If they have any kind of bow, then will be physically impossible to have them without small hollows when laid in a staggered pattern.

I've had the same with smaller wall tiles - luckily it looked ok as a "feature", but it explained why the tiles were seconds / cheap.



Posted : 18/08/2023 9:19 pm
Posts: 9093
Full Member


Looks good to me, it's going to move over time anyway. But we need to address the clinical garden, where are the flowers, shrubs etc. Hope that grass is real.



Posted : 18/08/2023 9:24 pm
thepurist and CHB reacted
Posts: 656
Free Member


not just the cheap porcilain, i fit a lot of quite expensive italian/spanish stuff and that can have quite big bows in it, can even be flat for 3/4 of it's length then dive of a mm or 2.
always try and avoid doing 50/50 if possible and sometimes it even states on the box not to.



Posted : 18/08/2023 11:05 pm
Posts: 1012
Free Member


Just finished laying a porcelain patio last week, all the slabs bowed at the end (900x600mm) although the slabs appeared flat they were anything but , you have to find a happy medium so I level from the highest point.

Obviously I mention this to the customer and show them....but the main objective is to push the water away from the house with the least fall ( bubble off level touching the line)



Posted : 19/08/2023 7:36 pm
Posts: 33325
Full Member


Expect it to get worse as the bodies decay…

Yeah, that’s what I was implying…



Posted : 19/08/2023 7:52 pm
