Loose and cracked bricks in loft?

10 Posts
10 Users
0 Reactions
658 Views
Posts: 7362
Free Member
Topic starter


Hi all,

Was wondering if this is an issue......

Just been in the loft and noticed the brickwork is cracked and you can actually move the wall just by touching it in certain areas.

For context: House was originally a 2 bed end terrace and has over the years had a couple of extensions which have culminated in a double story extension on the gable end.

The new gable end is where the cracks are appearing and we also have quite a few cracks in the plaster in the rooms below the loft space.

We had the kitchen redone a couple of years ago which involved knocking two downstairs rooms into one by jacking up the original end wall of the house and installing a couple of steels. Builder himself admitted that his lads may have jacked the house up a little too much. This caused lots of cracking to plaster etc in the middle of the house.

Should we be concerned? Wife in convinced the house is going to fall down.

No cracks in the outside wall as far as I can tell.

[url= https://i.postimg.cc/DzL13ZCC/Image2.jp g" target="_blank">https://i.postimg.cc/DzL13ZCC/Image2.jp g"/> [/img][/url][url= https://postimages.org/ ]imagebb[/url]

[url= https://i.postimg.cc/Qxz7B5w4/Image1.jp g" target="_blank">https://i.postimg.cc/Qxz7B5w4/Image1.jp g"/> [/img][/url]

[url= https://i.postimg.cc/Wz3Dzbnc/Image3.jp g" target="_blank">https://i.postimg.cc/Wz3Dzbnc/Image3.jp g"/> [/img][/url]

[url= https://i.postimg.cc/8c9CCdcL/Image4.jp g" target="_blank">https://i.postimg.cc/8c9CCdcL/Image4.jp g"/> [/img][/url][url= https://postimages.org/ ]quick image hosting[/url]



Posted : 22/04/2023 9:05 am
Posts: 1166
Full Member


If the mortar bond between the blockwork has broken to the extent that you can move the wall then I would recommend you have someone look at it. I would get somebody independent from your builder.
As a temporary measure, I would use some timber strapping, fix it securely to an area of wall which is sound and then fix individual loose blocks to the strap to try to tie it together.
I hope you get it sorted out.



Posted : 22/04/2023 9:55 am
Posts: 11486
Full Member


What's going on under all that mortar buttered over the blocks, was that the builder fixing cracks after jacking up? Might be worth measuring the height between blocks to work out how deep that mortar bed is underneath... And a straight edge across to see how level each course is, to see if it's puckered up.



Posted : 22/04/2023 10:02 am
Posts: 44146
Full Member


I have been told a crack is nothing to worry about unless you can get your hand into it.  Buildings move around especially after major work.  I would get it checked but I wouldn't loose any sleep over it



Posted : 22/04/2023 10:11 am
Posts: 2826
Free Member


I wouldn't be so worried about the cracks if it wasn't for the fact that

you can actually move the wall just by touching it in certain areas.

I'd suggest following Sandboys advice and putting in some timber strapping as a temporary measure.



Posted : 22/04/2023 4:07 pm
Posts: 44146
Full Member


OOft - missed that.  sorry



Posted : 22/04/2023 5:43 pm
Posts: 1831
Full Member


Yeah, it’s one thing having cracks in a finish surface like plaster - completely normal - but cracked blocks in a gable wall are another matter, and if the wall is unstable (ie it moves) then something really needs doing. I’d be getting an expert in to inspect. I am not an expert, and I don’t even know who I’d phone first.

What I would do in your scenario is post to the screwfix community forum, I’d be hoping to hear from one user in particular - abrickie- who often gives good advice. Not many brickies or builders here in singletrack but there’s a few that still might comment here.



Posted : 22/04/2023 6:12 pm
Posts: 6762
Full Member


Those interior blocks aren't load bearing but at the same time won't be held in place by the weight of bricks above. If the interior are loose they aren't bracing the exterior face. Gable ends are the walls that tend to collapse in strong wind. I'd say they need looking at and rebuilding. It's possible during the extension work if they did Jack the wall up too much they've popped the top courses. Either way I'd wantvti know what caused it.



Posted : 22/04/2023 6:26 pm
Posts: 47
Full Member


Please don’t worry about the gable wall to much. They are Selcon blocks which are a PITA as they suck moisture out of the mortar when they are laid. They are better under load.
Selcons are not ideal in a loft as loft temperatures change rapidly so will cause cracking along mortar joints.
Your better off trapping the wall in between timbers fixed to the underside of the rafters. Sorry I don’t know how to add a sketch to the post. Happy to give more info if you want to contact me. Email in profile , I think 🤔
Hope that helps.
Ed.



Posted : 22/04/2023 8:38 pm
 pk13
Posts: 2727
Full Member


Taken into to loft because they are lighter than a feather?
We used to dunk them in water or the edges at least to stop them sucking up the mortar mix.
Fixing to them is a pain as well.



Posted : 23/04/2023 8:49 pm
Posts: 18073
Free Member

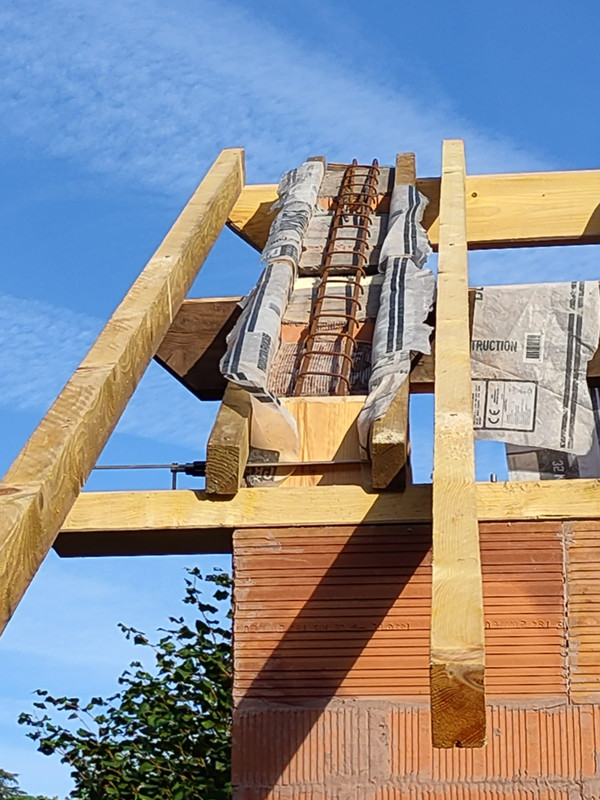

When edthecarpenter talks about trapping the wall between timbers - you can see a timber either side of my gable that do that in this pic taken before the concrete was poured:

We've in a seismic zone so the gable has reinforced concrete up the middle and over the top. The roof timbers are screwed/bolted together and onto the walls. You can also add cross members to triangulate the rafters - I haven't done this as the gable is only 1.7m above the belt of reinforced concrete around the top of the wall.



Posted : 24/04/2023 12:49 pm
