Insulation identification?

3 Posts
3 Users
0 Reactions
93 Views
Posts: 8392
Free Member
Topic starter

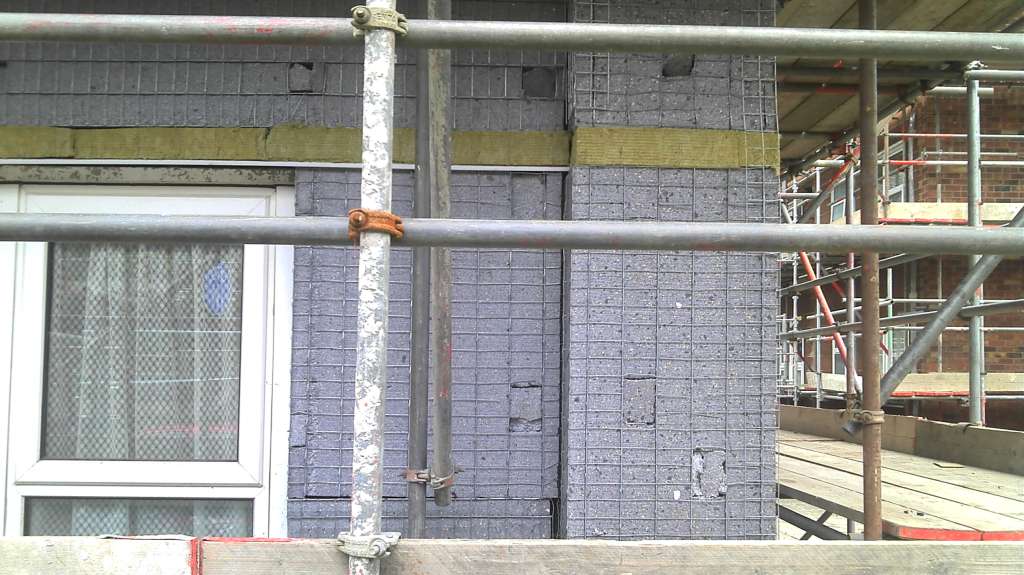

2012-07-25_11-08-26_171

I wonder if anyone can put a name to this stuff, retrofitted externally in 2012 to some flats near me. About 4-5" thick and then rendered over. I'm interested in a flat in the block, no documentation on the material but have some photos of the job in progress, the EPC doesn't specify. Thanks.



Posted : 26/03/2024 5:42 pm
Posts: 7915
Free Member


Looks like standard polystyrene EWI to me



Posted : 26/03/2024 6:04 pm
Posts: 17273
Free Member


The grey stuff is EPS insulation i.e Polystyrene.
The yellow band is mineral fibre insulation which provides a fire break in the system between floors.
How many storeys in the block?  If it’s over 18 m tall  (6 storeys) it should all be mineral fibre.

If I was to have a guess at what EWI system it is i’d have a stab at Structherm



Posted : 26/03/2024 6:50 pm
Posts: 8392
Free Member
Topic starter


Thanks again.

Just the 3 floors, and six flats per fully enclosed entrance/stairwell so not covered by tall building provisions.



Posted : 26/03/2024 7:07 pm
