Which shock bearing do I need?


Bike Forum
Last Post by dc1988 2 years ago
4 Posts
4 Users
6 Reactions
281 Views
 stick_man
Posts: 367
Full Member
Topic starter

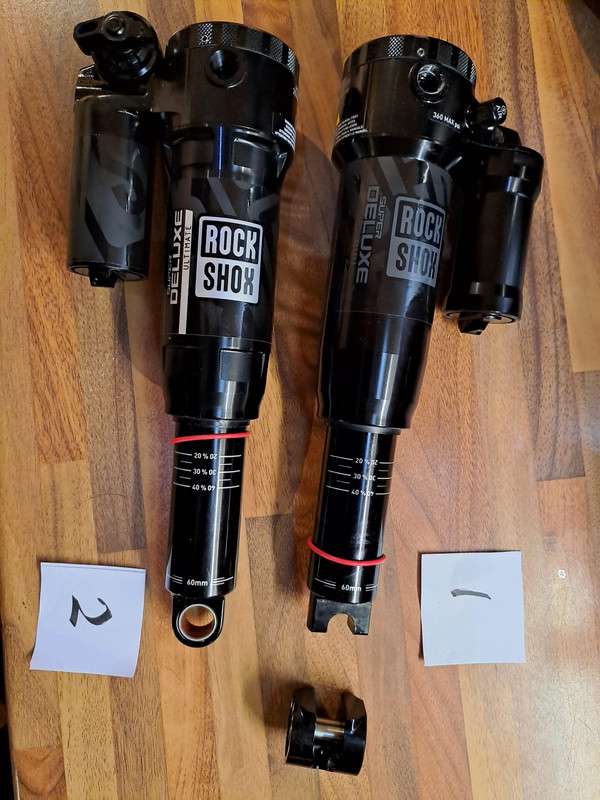

I would like to replace the shock on my nukeproof. The shock on the right (1) was on the bike from new, and the shock on the left (2) is the replacement.

Both are 'trunnion' I think, but the replacement shock has a different bearing at the bottom. Is there an adaptor I can buy to make the new shock fit? If not, what are my options?

(ps the attachment on 1 doesn't look like it would fit over the bearing on 2 even if I removed the bushing)

Whats-App-Image-2024-01-04-at-19-08-36[1]



Posted : 04/01/2024 7:23 pm
 devash
Posts: 3985
Free Member


Is the one on the right from a Specialized bike? It looks like you would need to replace the damper body / shaft on the left.



Posted : 04/01/2024 7:43 pm
stick_man and stick_man reacted
 The-Duke
Posts: 0
Full Member


You should be able to fit new shock hardware to shock 2, I think it's M8 x 30mm that would replicate the bearing mount on shock 1. Currently £18 from tf tuned.



Posted : 04/01/2024 8:06 pm
stick_man and stick_man reacted
 stick_man
Posts: 367
Full Member
Topic starter


Thanks @the-duke I'll give tftuned a call.



Posted : 04/01/2024 10:23 pm
 dc1988
Posts: 3149
Full Member


You can buy an aftermarket bearing mount to fit a standard bushing mount. Tf tuned sell the Rockshox and Fox version. I recently fitted the Fox one to my Rockshox shock, it presses into the shock in place of the bushing



Posted : 04/01/2024 10:38 pm
stick_man and stick_man reacted
