I'm trying to fit gears to my SS HT. I bought a Shimano SL-M5100 11 speed shifter, and I've BL-M7100 brakes.
The shifter doesn't have its own bar clamp, so what do I need to attach it to the brakes (assuming they do attach)?
Pics of shifter

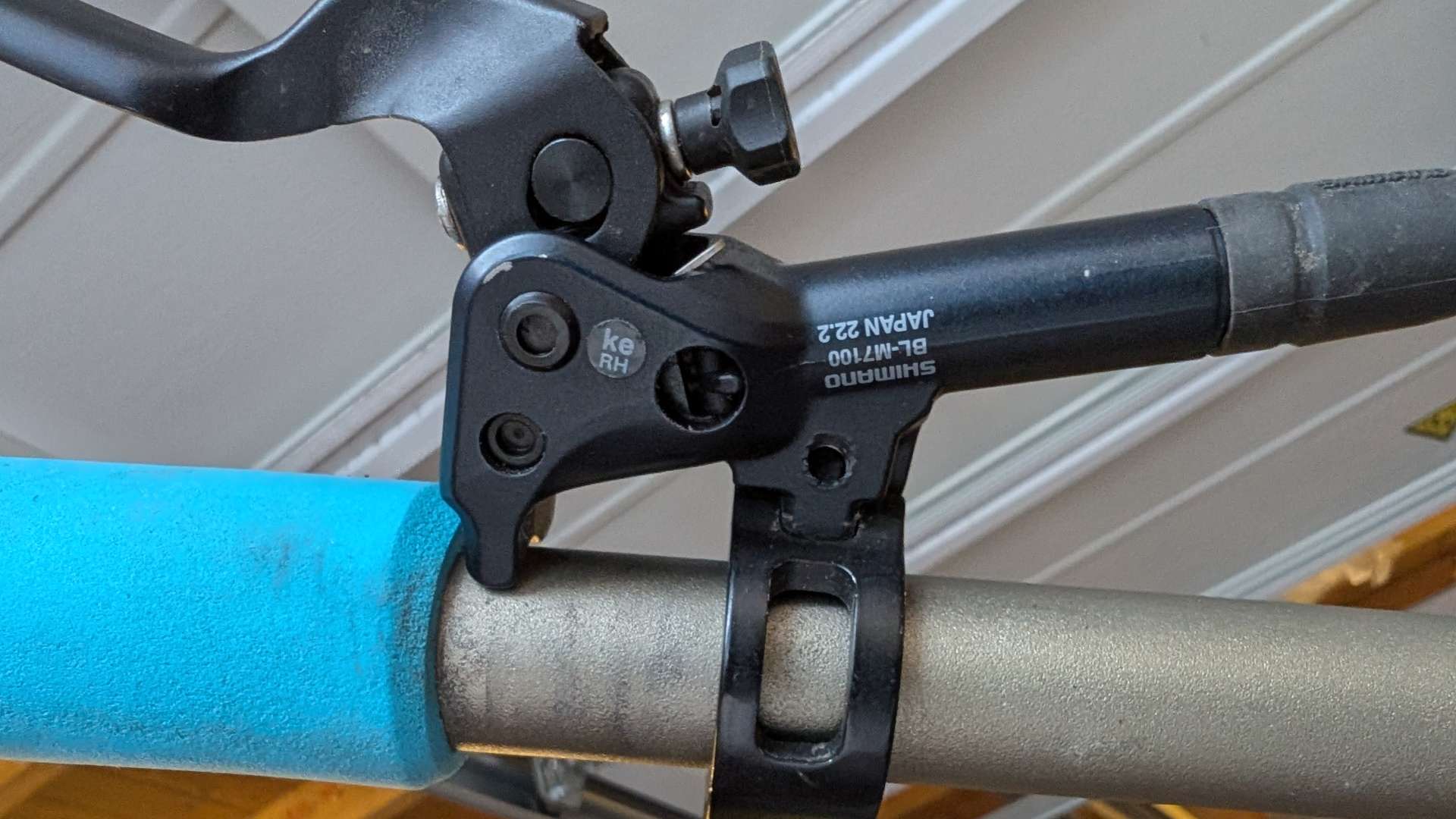

Pic of brake

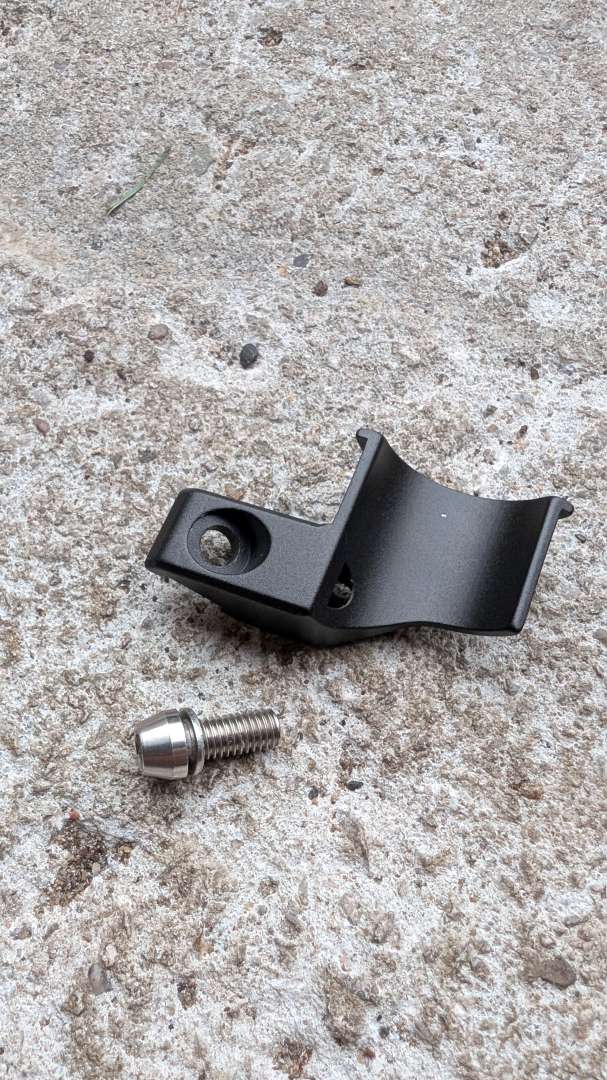

I also have this adaptor thing which I think came with the shifter, but can't for the life of me work out how it helps with what I've got ...
Or is it just a case of buying a clamp for the shifter, something like this?
https://www.bikeparts.co.uk/products/shimano-spares-sl-m7100-right-hand-base-cover-unit
Â
I think you have an iSpec II shifter but iSpec EV brakes. Unfortunately they are not compatible.
Â
This is outside of my range of knowledge, but it's possible that this might work -
https://www.wolftoothcomponents.com/products/shiftmount?variant=14423033053219
Actually, I think that that adapter I mentioned might be the wrong way around, sorry.
Id just use the shifter bar clamp and sack of Shimano's confusing range of I spec that seems to change with every generation.Â
Ignore the adapter doohickey arm, that's an ISpec II part.
Brakes are definitely ISpec EV. Shifter looks like it is - the non-window 5100 definitely is. The part I cannot see in the image looks a bit like this and is a nut that rides in the Ispec EV brake mount, and that your shifter screws into.
