[Closed] repairing tyre punctures near the bead

18 Posts
15 Users
0 Reactions
603 Views
Posts: 1508
Free Member
Topic starter


seem to be going through a phase of ruining tyres with tiny little cuts right near the bead on the rear wheel. done it on both bikes recently and the latest being a pin hole puncture on a DD casing.

clearly i've put on a bit more timber than i thought and need to up my air pressures. however as i't now getting a bit spendy, any way of repairing them? i normally take the view that if they are that close to the bead you're never going to get a good repair for tubeless, but perhaps i'm missing something - any ideas before i shell out for yet another tyre?

would tyre inserts help with this and allow lower air pressures without trashing tyres?



Posted : 29/06/2021 8:22 pm
Posts: 1508
Free Member
Topic starter


obligatory and possibly superfluous bump for visibility



Posted : 29/06/2021 8:23 pm
Posts: 0
Free Member


You could try tubeless patches, they fixed a hole I had near the bead on my last tyre.

Yes inserts might help as it sounds you might be pinch flatting the tyre. Or more tyre pressure.



Posted : 29/06/2021 8:26 pm
Posts: 3224
Free Member


Anchovies/bacon strips work just fine ime.
I've several tires like this that have survived from a 1st ride pinch to tread is now worn out with a bead plug.



Posted : 29/06/2021 8:27 pm
Posts: 5720
Full Member


^^^ yep. Have had great success with anchovies in that location. I think patches would be under too much flex to remain effective. I now tend to run a simple insert to help prevent this type of puncture with some success.



Posted : 29/06/2021 8:29 pm
Posts: 9783
Full Member


Still running a couple like that, repaired with a mushroom plug from the inside and trimmed to the edge of the bead with a stich cutter.
No problems running tubeless with them



Posted : 29/06/2021 8:34 pm
Posts: 93
Free Member


I've gone old school. Tyre worms are too expensive and dont really work well on linear punctures.

worked fine on two EXO+ Assguys and a DD high roller

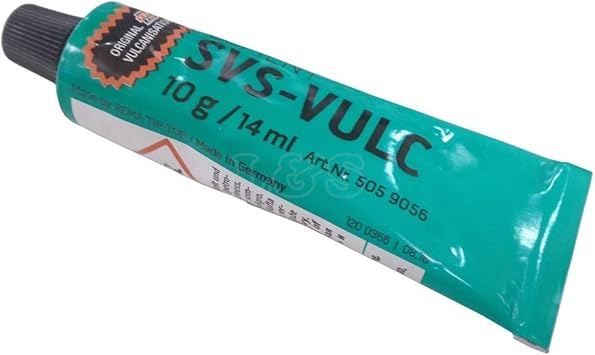

rubber cement

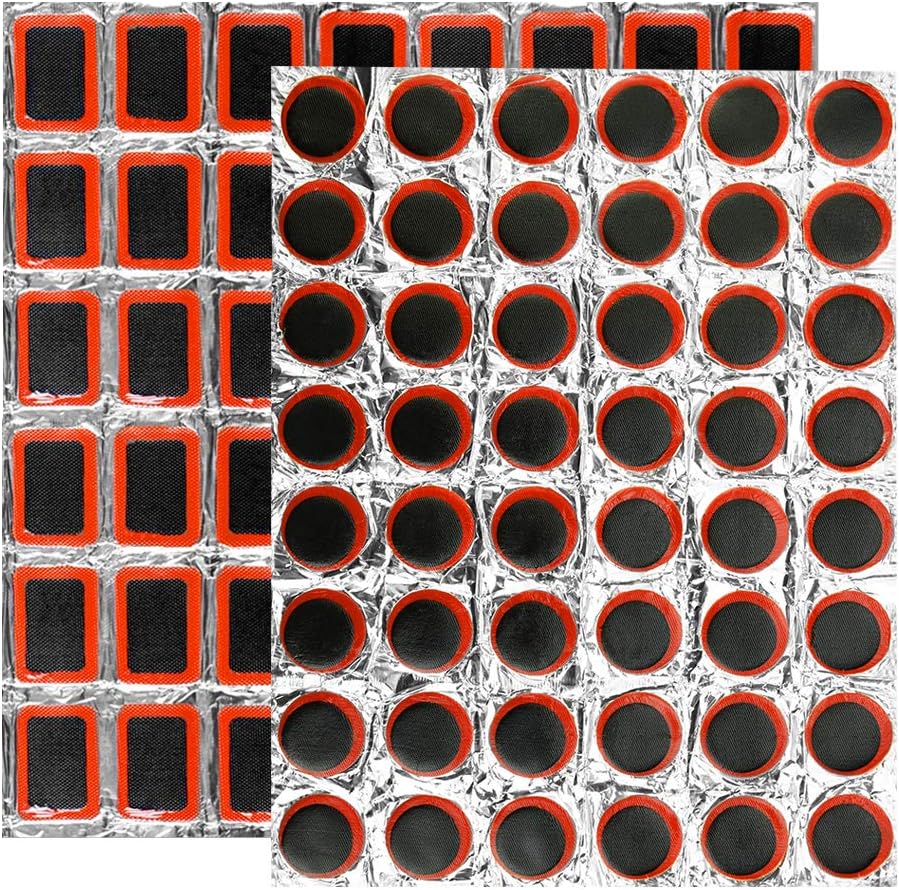

patches



Posted : 29/06/2021 8:45 pm
Posts: 1626
Full Member


I’ve used internal mushroom patches on the bead and trimmed the patch and external part of the mushroom, which ended up sitting on the rim wall, went straight up and sealed fine.



Posted : 29/06/2021 9:02 pm
Posts: 535
Full Member


As above, patch inside then I used super glue on the outside. Looks a bit crap where glue dries but seals up a treat.



Posted : 30/06/2021 9:49 am
Posts: 40225
Free Member


I've generally had success with anchovies, but I have to say that's a neat job Jimmy.

More importantly though, I've stopped getting them now that I've put inserts in all my rear tyres.

Assuming you haven't done that OP, I'd recommend it. Rimpact Pro are good.



Posted : 30/06/2021 9:59 am
Posts: 1508
Free Member
Topic starter


thanks all, will dig out some patches and give it a whirl with and extra layer f shoe-goo for good measure

@jimmy748 and @Tracey - those mushroom patches, are they just standard motor bike ones? are they self adhesive or do you need glue or any special tools to use them? any particular brand to look out for or just whatever relevant size on amazon?



Posted : 30/06/2021 10:04 am
Posts: 12993
Free Member


puncture on a DD casing.

Had this a couple of times using DD casing.



Posted : 30/06/2021 10:05 am
Posts: 9783
Full Member


Glue them on, various sizes on Ebay, our most used size is 3mm. Got a big tin of vulcanising glue rather than mess about with the little tubes. Once the metal end is inserted I pull through with a pair of pliers to ensure a good seal



Posted : 30/06/2021 10:13 am
Posts: 1626
Full Member


I think mine were advertised as 4mm, and I use TipTop SC-BL cement (the blue really strong stuff)



Posted : 30/06/2021 1:11 pm
Posts: 0
Free Member


Ordinary patches you'll struggle with the orange band all the way round that could interfere with tyre seating, unsticking and being too close to the cut itself

Weldtite do 'edgeless' patch strips that you cut to whatever size. More flexible and seem to stick better than most patches. Only need a couple of inches square if that. Have run them for ages with no problems across various tyres
https://www.ebay.co.uk/itm/254714183712?hash=item3b4e260020:g:M74AAOSwDjlfWO8f



Posted : 30/06/2021 1:33 pm
Posts: 5055
Free Member


How narrow/wide are your rims?



Posted : 30/06/2021 2:50 pm
Posts: 65918
Free Member


If there's space for a mushroom, then I use a mushroom. But if it's right at the bead then a standard vulcanised patch. Not a self-adhesive one, a proper one.



Posted : 30/06/2021 11:19 pm
Posts: 7086
Full Member


I've just recently fixed one with a dynaplug having first read this: https://chainslapmag.com/2017/02/plugged-dynaplug-tyre-repair-system/



Posted : 30/06/2021 11:35 pm
Posts: 346
Free Member


I was struggling to fix a pin hole on the bead with anchovies. Until I stopped trying to use the small anchovies and crammed a big fat one in. That worked instantly,

Now it doesn't matter how small the hole is I will allways just put a big plug in the work so much better



Posted : 01/07/2021 9:23 am
