Hi all,

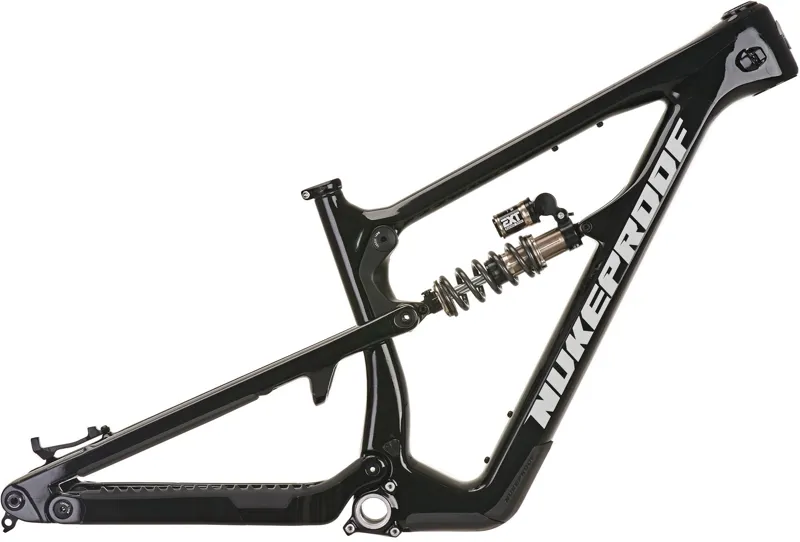

Can't find anything online about it, wondering if anyone knows the post insertion length on a Large Nukeproof Mega 290C from circa 2024.
Â
Got a 180mm Bikeyoke in there at the mo, hoping to move to a 210 / 230 OneUp but just want to double check insertion depth.
Â
Thanks!
I don't recall seeing any figures for it.
You're better off dropping a standard seat post in and marking where it comes too.
The kink in the seat tube can interfere with the actuator too - I have a OneUp V2 180 dropper in my Medium 290C and I have about 25-30mm from seat clamp to top of the dropper collar (if that makes sense....).
Seat tube length on the geo charts is 440mm for the Large.
Â
So probably about another 20-30mm past the bottom of the seat stay where it crosses the seat tube.
Â
Â
OK Cheers will give that a whirl.
I had a 2019 Mega, which from memory had a similar kink in the seat tube that restricted dropper insertion. I ran a 30.9 post with a shim which gave me significantly more insertion. It allowed the post to extend much furtner past the kink before it touched. From memory it was around 25mm. (Note: Alloy 2019 large frame).
