Youngest of the plusn8's has a Marin Hawk Hill Jr like this. https://99spokes.com/bikes/marin/2019/hawk-hill-jr
Isn't she lucky. It comes with 24" wheels but is convertible to 26".
She has now grown and I need to upgrade.
I need a maxle for it, it I can't work out what size. Its say 142 x 12, but there is a huge range of 142 x 12's.
Does anyone have one of these bikes and has done this?
Any links to where I can buy the correct maxle?
Marin website just says 142 x 12...
Nobody?
Marin UK were inctedibly helpful to me when i needed a dropout for a 2008 bike, importing a few from the US and notifying me when they arrived and were on their site. Suggest asking them.
I've just got one of these. It's hidden away waiting for a birthday but I can have a rummage and measure and photo the axle. Bear with me...
...although before I do, I know it has an adapter for the dropout to convert it from qr to thru. The guy I bought it from specifically pointed this out - I suspect that's the cause of any issue.
rich_s - it will only have the maxle if its been converted to 26.
The bike as standrd 24" comes installed with a special spacer as you mentioned, that converts the 142 frame to qr.
My problem is going to 26, it needs a maxle and there are 4 different "142" maxles I can find...
I am assuming its the 166mm long 17mm diameter 1mm thread, but.....
If you have one fitted it probs has the dims printed on it?
142-166-17-M12-P1
142-166-17-M12-P1.5
142-170-17-M12-P1.5
142-172-20-M12-P1.75
There is reasonable guidance here that probably narrows it down to 2 options. But the options listed in the spec do not tie in with the options for sale on the same page.
https://www.chainreactioncycles.com/fr/en/brand-x-twist-lever-thru-axle/rp-prod176625?
Yay! Forum seems to be back. Just posting here in case anyone needs this in the future...

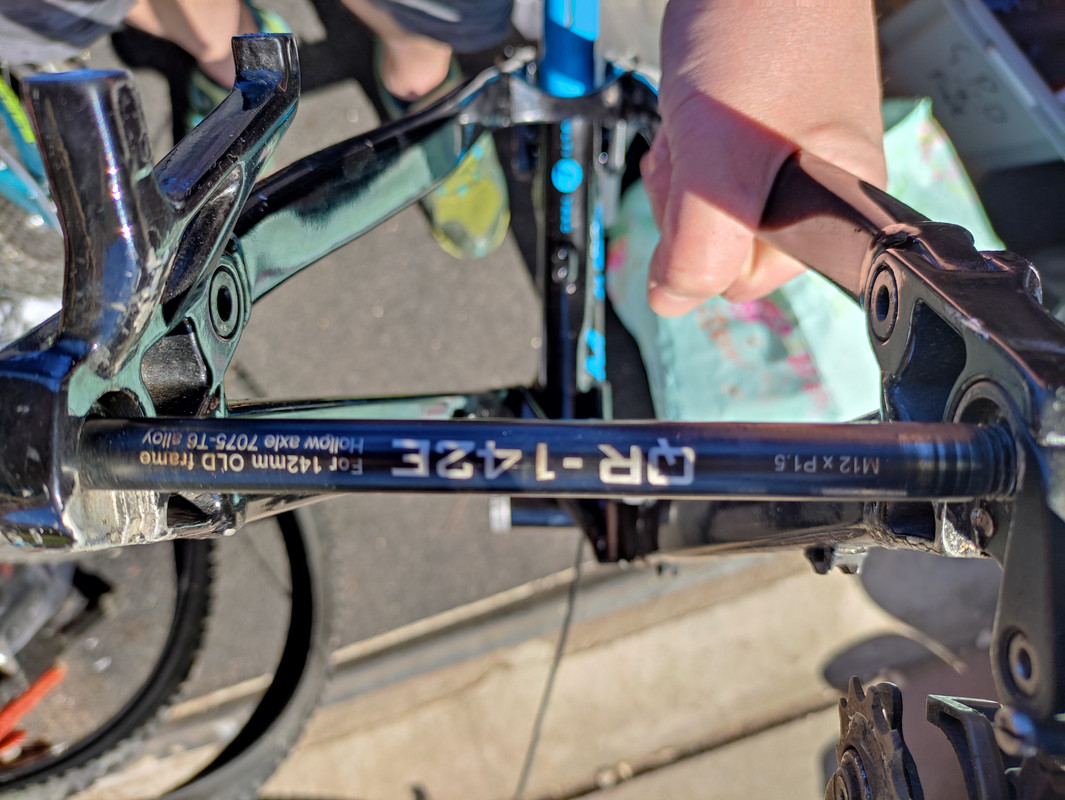

Axle is M12 x P1.5 QR-142E for 142mm OLD frame.

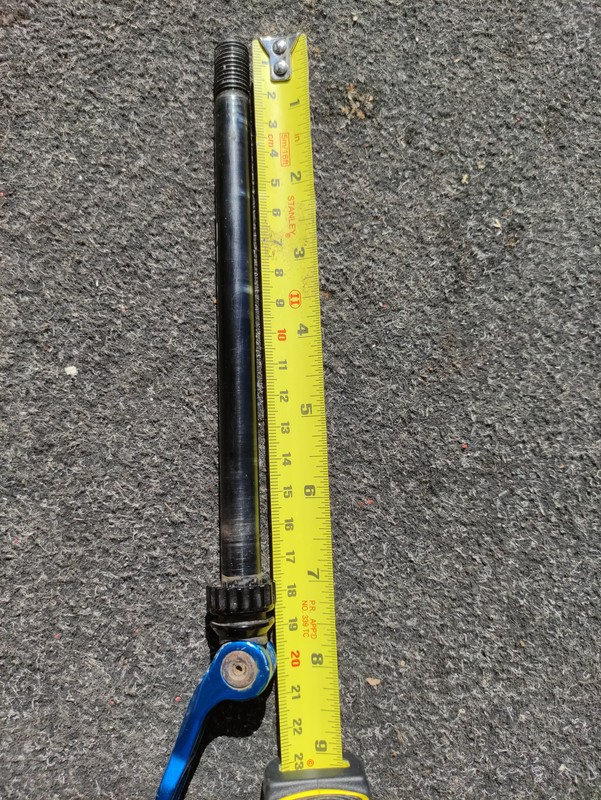

Pic of axle and next to tape measure.
And it seems to be this one:
https://www.merlincycles.com/a2z-e-tru-142x12mm-axle-140687.html
Looking for the love button! Cheers
I've had confirmation from Marin that the spec is actually:
"The correct rear thru-axle spec for your Hawk Hill Jr = 168 mm_L1 {axle length}, 20mm_L2 {threaded portion}, M12X1.5 {thread diameter x pitch}. Marin factory part #728551."
Hope that helps for anyone in the future!
