[Closed] How much Steerer should be out of top tube?

14 Posts
13 Users
0 Reactions
53 Views
Posts: 1335
Free Member
Topic starter


Never paid much attention ot this before but because im getting some new works and the probably going to cost a lot - would be good to get it right, ideally how much steerer should be out of the top tube (this is on a Whyte G150 and im 6ft 2ish)I currently ride with probably an inch of spacers on the steerer but wondered if it was better to reduce the spacers. Nor sure if there was a guide somewhere for it?



Posted : 10/02/2016 8:48 am
Posts: 39449
Free Member


enough that the bike fits you and a 5mm spacer on top of the stem.

blindly Slamming that stem as you will be advised is just silly.



Posted : 10/02/2016 8:50 am
Posts: 251
Full Member


move some spacers from below to above the stem ride it for a week or two and see how you get on, repeat until you find a height you're happy with.

No reason not to just leave the spacers above the stem indefinitely bar aesthetics (and a marginally higher risk to your groin in a fall).



Posted : 10/02/2016 8:52 am
Posts: 0
Full Member


Spacers above & below so you can get the fit right for "normal riding" but you can raise up a little if you go somewhere that's more downhill orientated.



Posted : 10/02/2016 8:55 am
Posts: 10942
Free Member


I think most new bikes come with around 30mm of spacers to allow for fine tuning and a steerer trim later.



Posted : 10/02/2016 9:16 am
Posts: 0
Free Member


If it's a bike I anticipate keeping for a long time (steel commuter for instance), I always leave a shed-load of spacers above the stem so I can have a more upright position when I'm (even more) old and feeble.

APF



Posted : 10/02/2016 9:47 am
Posts: 0
Free Member


Also if you leave plenty of steerer you've got more chance of the fork working well on other bikes and being easier to sell on when the time comes.



Posted : 10/02/2016 9:50 am
Posts: 5559
Free Member


I leave as long as i can because it is more useful if you want to sell

IIRC my pikes have about 40-50 mm above the stem

It only about aesthetics so it does nto really matter -

Remember you can always cut more off you cannot easily add more



Posted : 10/02/2016 9:52 am
Posts: 4736
Free Member


enough that the bike fits you and a 5mm spacer on top of the stem.

My new bike (did I mention i've got a new bike) came with a 5mm spacer above the stem. The last 8 had the stem on top, whats the basis for this?



Posted : 10/02/2016 10:02 am
Posts: 1069
Full Member


Fork manufacturers recommend no more than 30mm of spacers below the stem but as said you can leave ones above if you wish. I generally leave enough for 30 below and then adjust up and down to find a comfortable ride height before cutting away any excess.



Posted : 10/02/2016 10:05 am
Posts: 251
Full Member


[i]5mm spacer above the stem[/i]

it's to stop the stem bolts crushing the steerer.

Trek void the warranty on their carbon steerer forks if you don't do this.

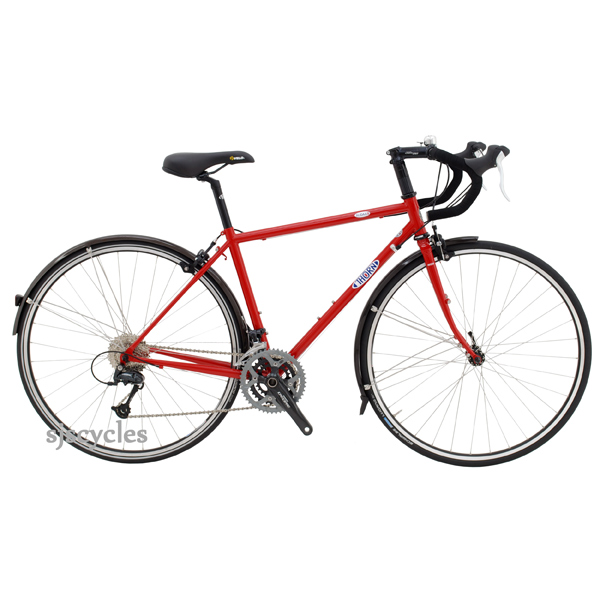

Thorn don't seem to have got the memo though;

[img] [/img]



Posted : 10/02/2016 10:08 am
 tomd
Posts: 0
Free Member


If it's a new build and I don't know how I'll get on riding it I leave quite a bit extra, probably 40mm worth of spacers. Once I'm happy with the position I'll cut it down to 20mm or so. It just looks a bit tidier but still gives some adjustment.



Posted : 10/02/2016 10:10 am
Posts: 1190
Free Member


As many as you need for the bike to fit +5mm above the stem. It's a bit of a piece of string question though. Different people prefer different amounts and the same person will have different amounts for different bikes.



Posted : 10/02/2016 10:17 am
Posts: 39449
Free Member


have only seen the fork manufacturers 30mm guidance when dealing with carbon forks.



Posted : 10/02/2016 10:25 am
Posts: 0
Free Member


10 mm max below the stem any more is a disaster

And as for a stack on top of the stem WTAF is all that about 🙂



Posted : 10/02/2016 10:33 am
