[Closed] help with wheel build

9 Posts
4 Users
0 Reactions
36 Views
Posts: 0
Free Member
Topic starter


Trying to work out what spokes I need for building my wheels

Hope Pro 2 hubs

Spank Stiffy rims, 526mm ERD, 720 g

does this look right?

[IMG] [/IMG]



Posted : 24/11/2010 10:18 am
Posts: 0
Free Member
Topic starter


oh poo, I'll try and get a better picture



Posted : 24/11/2010 10:19 am
Posts: 0
Free Member
Topic starter


[IMG] [/IMG]

not much better is it?



Posted : 24/11/2010 10:31 am
Posts: 4788
Free Member


http://www.wheelpro.co.uk/spokecalc/

front with 3x
left 243.3
right 254.7

rear with 3x
left 254.1
right 253.3

seems the same as long as you rim measurement is correct - best to get the rim and actually measure for yourself... to double check



Posted : 24/11/2010 10:36 am
Posts: 0
Free Member


thats not right.243 should be 253?



Posted : 24/11/2010 10:57 am
Posts: 0
Free Member
Topic starter


where do you measure the ERD from?



Posted : 24/11/2010 11:06 am
Posts: 41395
Free Member


From nipple-bed to opposing nipple bed.



Posted : 24/11/2010 11:14 am
Posts: 0
Free Member
Topic starter

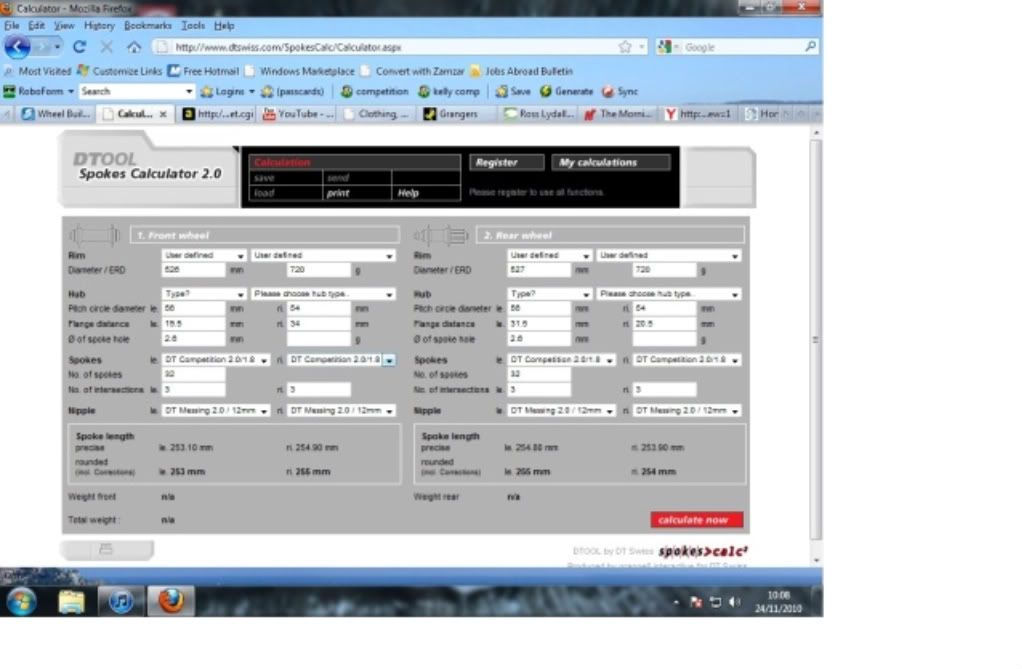

this is what its giving me for the front

[IMG] [/IMG]

and this for the rear

[IMG] [/IMG]



Posted : 24/11/2010 11:31 am
Posts: 0
Free Member
Topic starter


So is this what to go with?

Front 253, 255
Rear 255, 254

I see that CRC only sell even sizes, so do you round up or down?

Also what spokes to buy?

DT Swiss comp?



Posted : 24/11/2010 1:48 pm
Posts: 0
Free Member
Topic starter


Think I've got it sorted

256-254mm for both wheels

DT Swiss champion or comp?



Posted : 24/11/2010 6:54 pm
