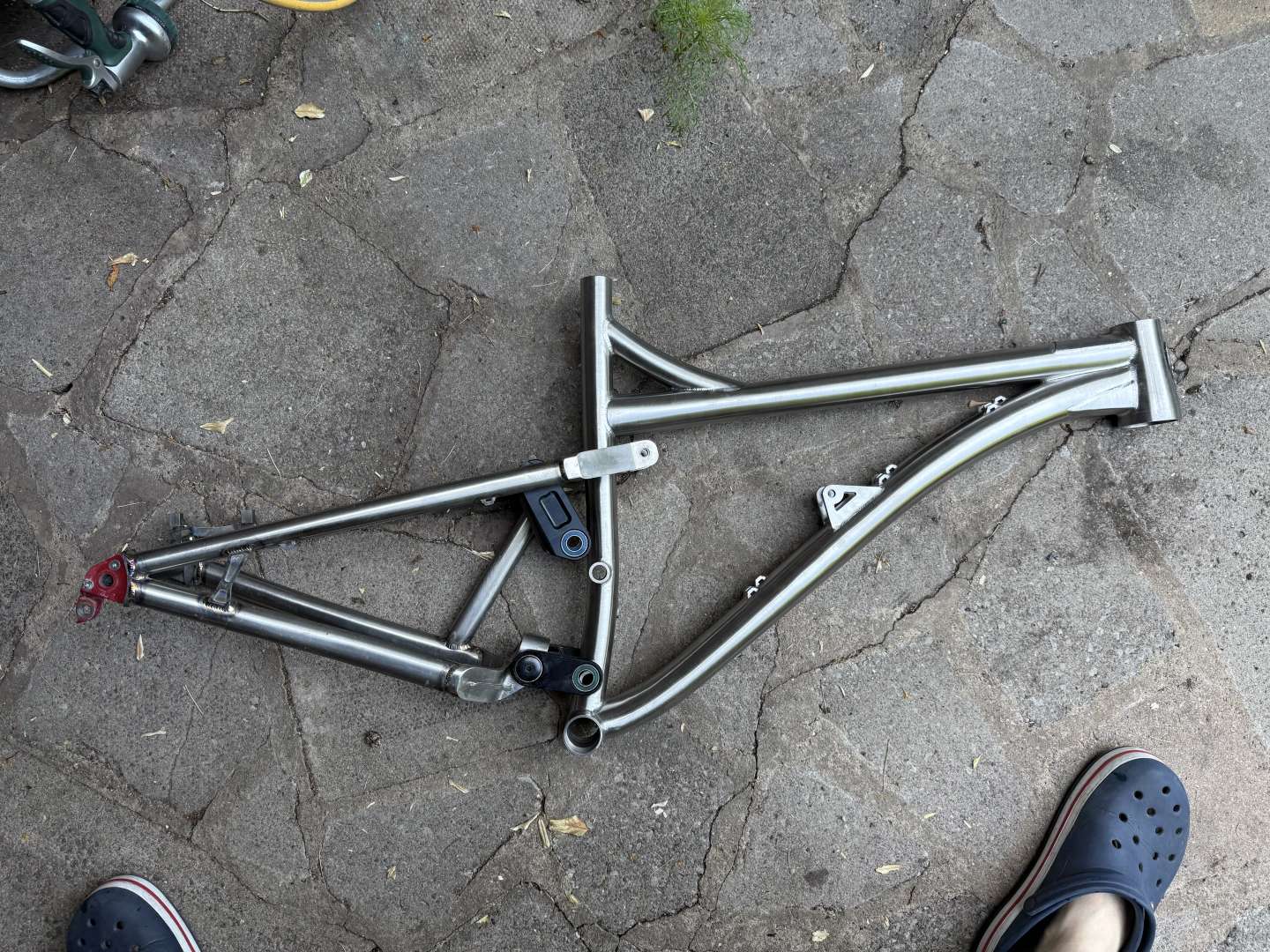

I acquired a non-matching Kingdom hex front and rear end. Top linkage pivot position is different so pondering the option of getting a linkage made. Does anyone do this? Perhaps a hobby CNCist? Will it ride like a dog and totally bugger up all leverage curves and geo? Any way to model it?
I have been looking for a matching front end or rear end but no success hence considering frankensteining these two together.
Well aware I will be flamed here for this!

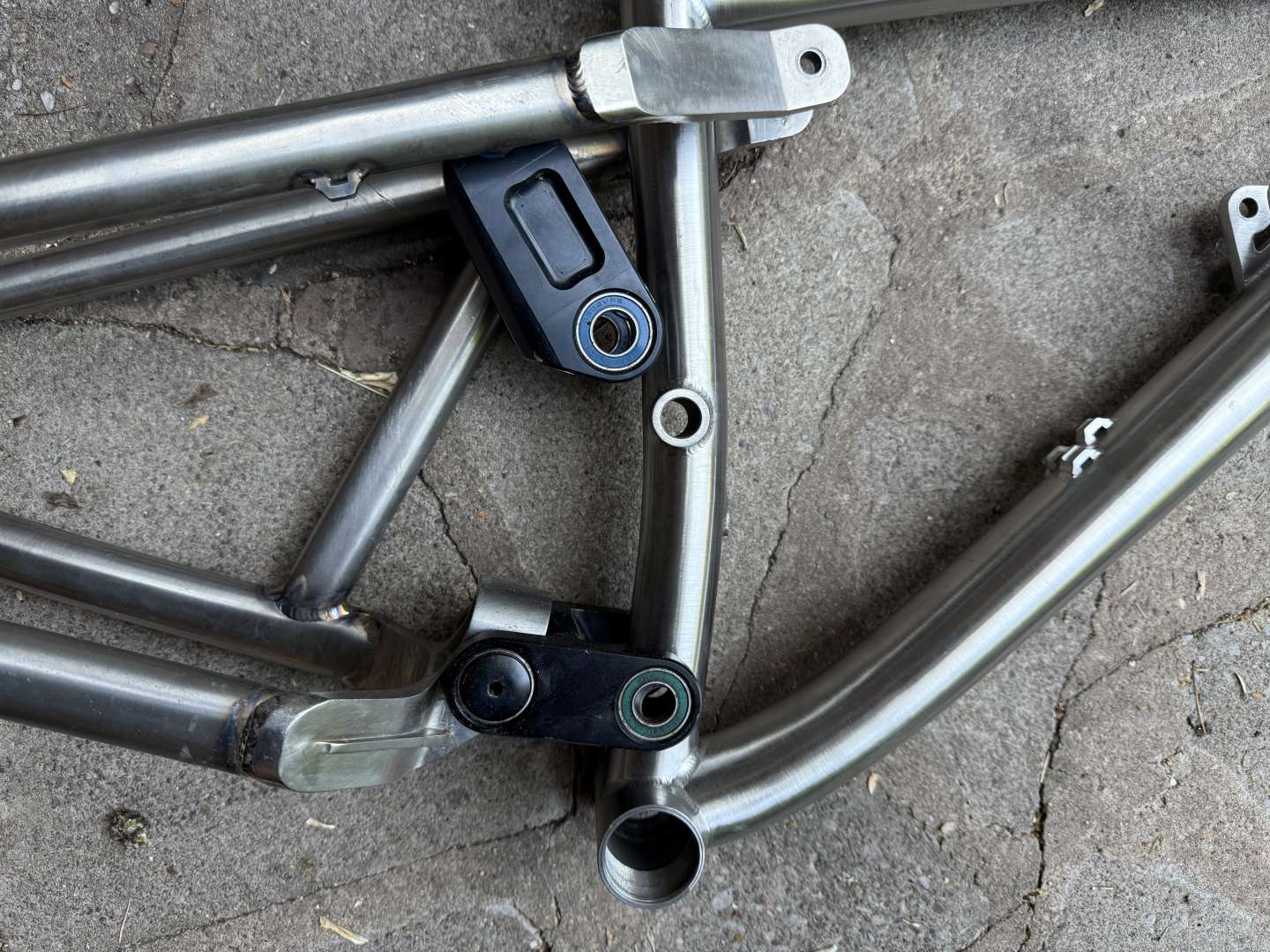

Linkage is around 30mm too short.
cheers
Chris
How far off is it when you swing the bottom linkage down into position?

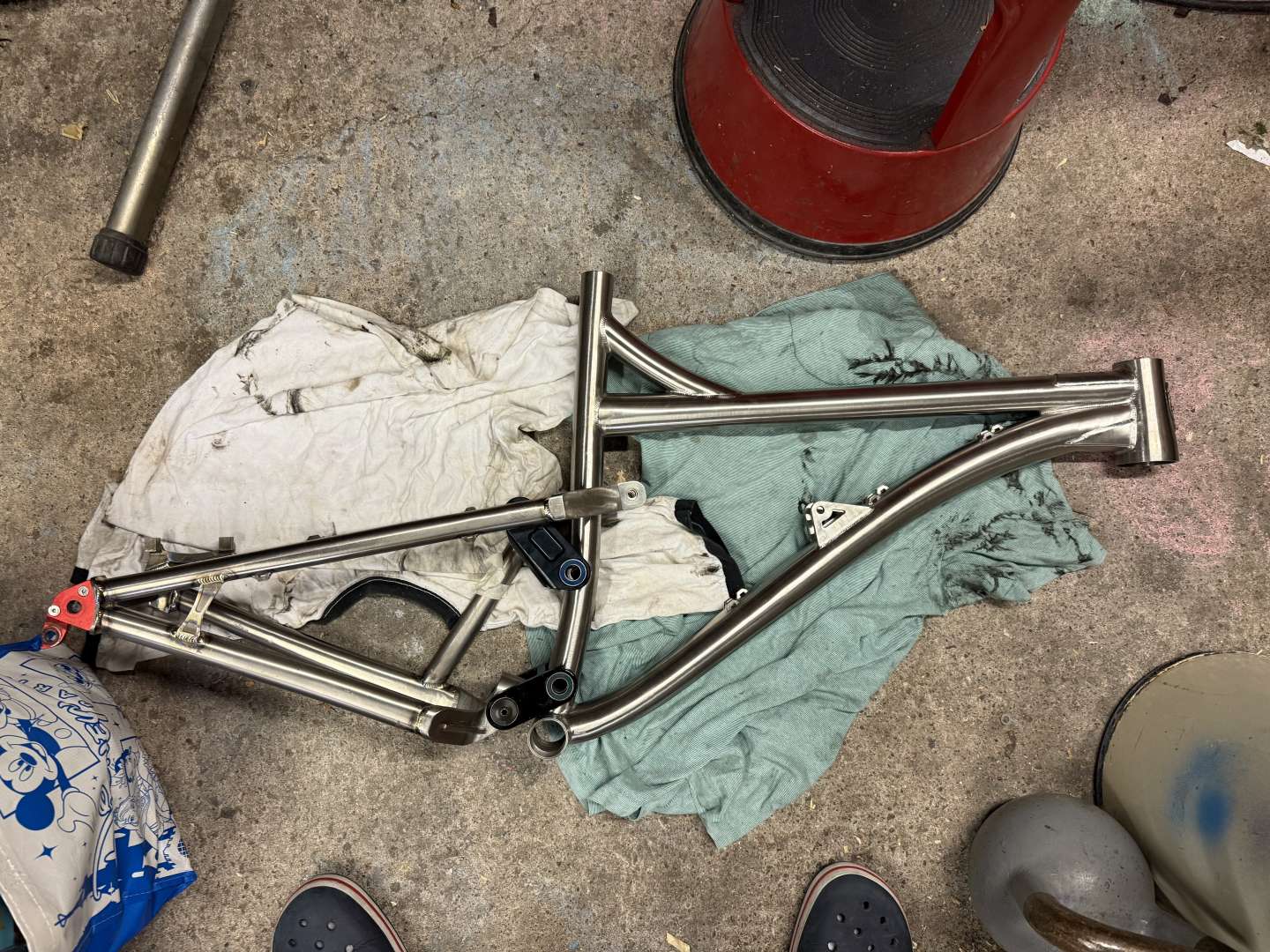

Bottom linkage has a stop built designed into it so wouldn’t go much further. Just experimented flipping that bottom linkage and can make something resembling a frame. What would be the concerns here?
Without some forks, wheels and a shock in there it’s very hard to see what will work. You need to get the rear axle to a viable place for the geometry you want, that’s step one. And then you need the linkage to move through the travel pushing the shock - that complex arc has to fit with the shock sliding shorter.
If you can measure it accurately you can model it:
Thanks. Bloody complicated then! All good fun

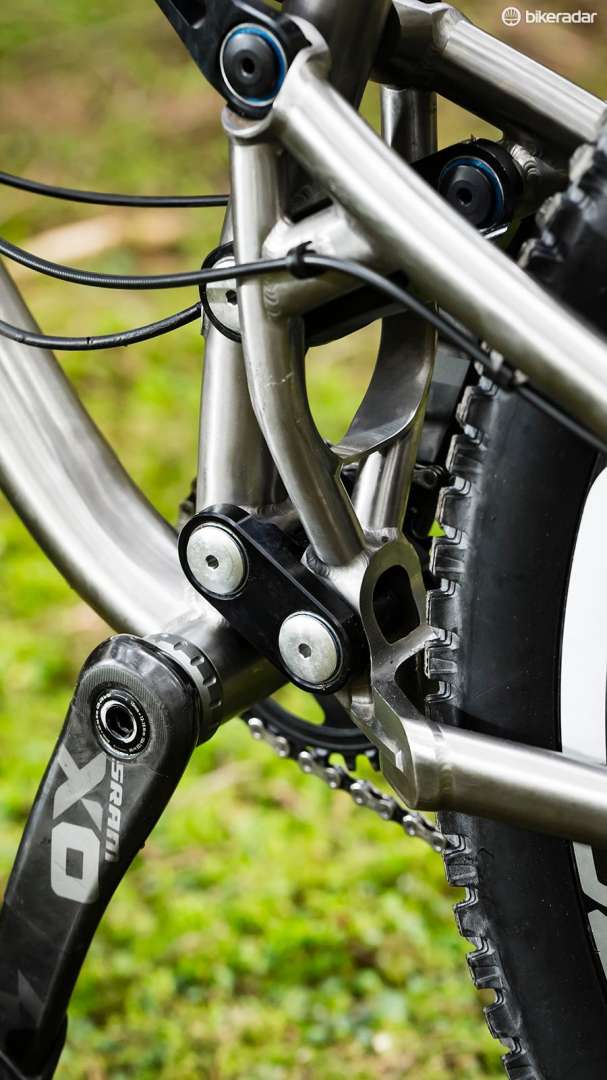

Now your frame more closely resembles this one...
My first query would be to Kingdom to see what pieces I had and how they fit together. If they've got something it'll be much faster, easier and cheaper than going down the CAD and Fab route.
