Morning all
Can any point me in the direction of where to get my hands on a replacement bolt for the above?

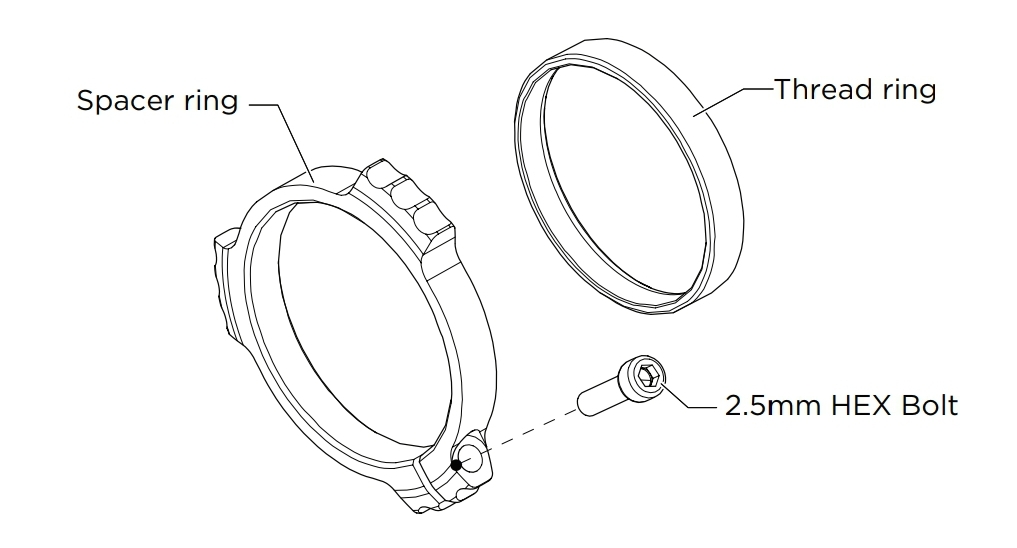

Ths little chap:
Have you contacted Cane Creek?
At the price of eeWings I'd hope they'd send a replacement immediately hand delivered on a cushion by 12 virgins.
Yep, I've been in touch and I'm awaiting a response.
For a 2.5mm Allen key head, size is M3 it would be a socket head cap machine screw.
Other lengths are available, just measure the one you’ve got. Length quoted is measured below the head.
Edit: dunno what that spacer ring is made of, but if it’s stainless steel, be very careful if using stainless screws. Use a good dollop of anti-seize.
It’s not clear on the instructions, but my interpretation would be - 2.5 hex bolt, would refer to the tool being 2.5mm, not the bolt.
A M2.5 bolt with a hex head (socket cap) would be a, hex head, 2.5mm bolt.
ExtraUK aren't listing the bolt as available as a spare part, only the complete ring including bolt @ £32.99 in various colours. The bolt is described as Grade 5 Titanium 2.5mm hex fastening bolt
It’s screwing into Aluminium, stainless is fine, you want M3x19mm
Well if we’re being pedantic, it’s actually a screw, not a bolt.
Cheers all.
I'll wait and see what CC come back with. If the only option is to buy a whole new preloader I'll explore that link up there ^^.
I'm not fussed about the bolt / screw being titanium.
This is the exact fixing you need
or type “fixings” in google maps to find a local supplier.
The bolts on the muc-off ones are even smaller 2.5 using a 2mm Allen/hex key, terrible idea.
Cheers Jimmy, much appreciated. 👍
At the price of eeWings I’d hope they’d send a replacement immediately hand delivered on a cushion by 12 virgins.

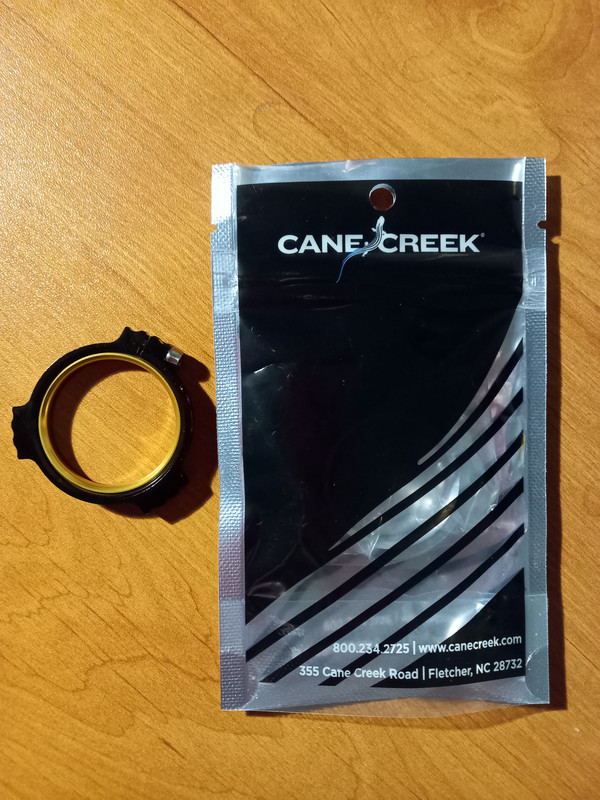

No virgins involved, just the postie, but I've just taken delivery of a replacement Pre Loader - no questions asked.
Tip top customer service.
