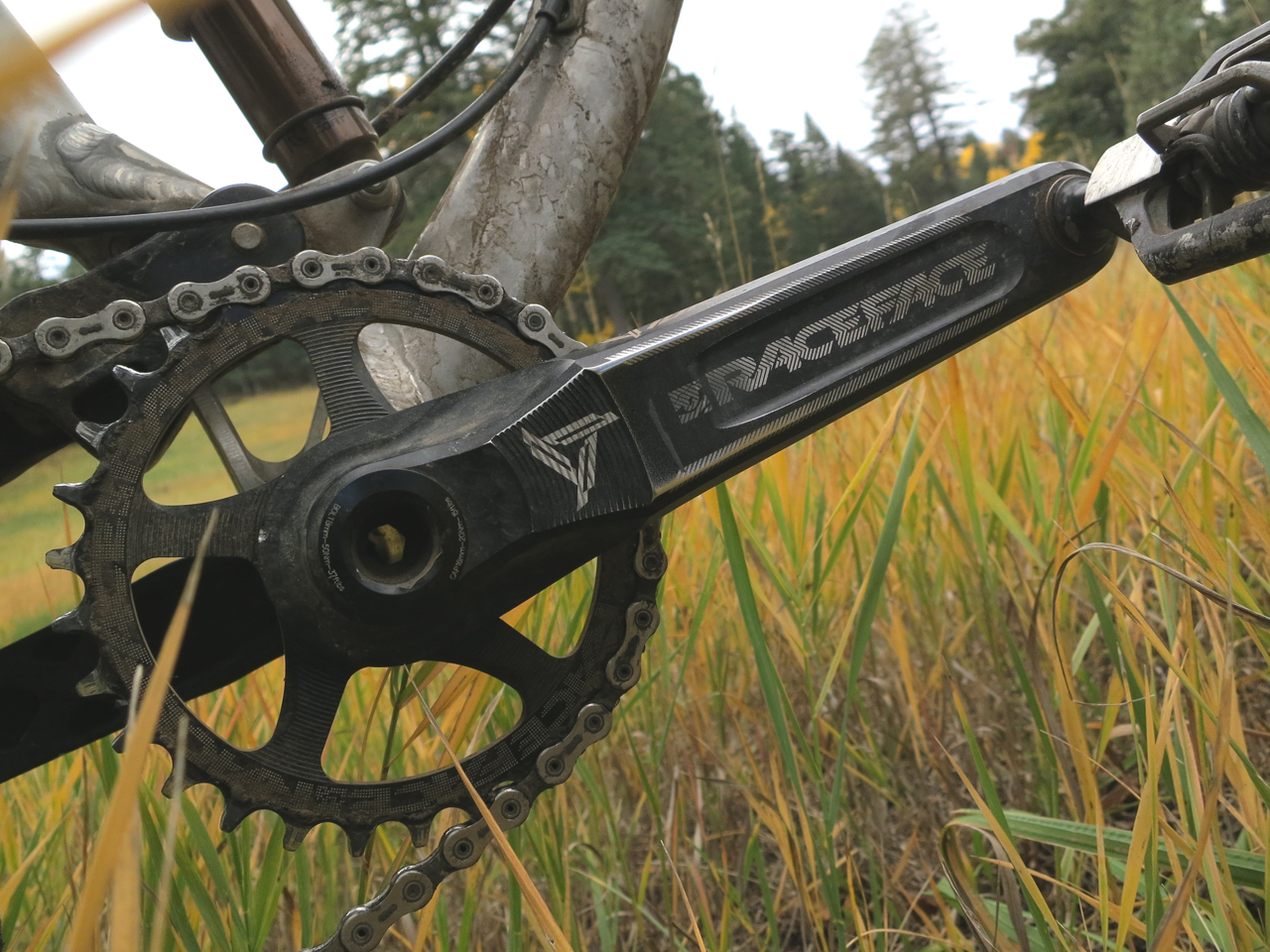

By foregoing the traditional four-bolt chainring interface in favour of a direct-mount model, Race Face’s Cinch line of cranksets allows for a marked increased in versatility and (in the case of 1x models) a decrease in weight. The increasingly-common 30mm aluminium spindle can be removed from one or both arms, making a swap to downhill or fatbike widths feasible while double or triple spiders can be swapped in place of the single should the whole one-ring thing prove to be a fad.
Our 175mm, 30t sample came in at 617g- a mere 55g (10%) heavier than the new Shimano XTR single and right in the neighborhood of SRAM’s carbon X01 single-ring model. The dedicated bottom bracket weighed 89g- just on the light side of average. Packed with Phil Wood grease, that BB is larger on the outside than those designed for 24mm spindles. While this change requires a dedicated tool, the payoff comes in terms of bigger balls and (one hopes) improved service life. The single ring mounts to the back of the self-extracting right crankarm using the existing Octalink/ISIS bottom bracket spline.
When first installed our sample bottom bracket was horribly stiff, with drag so severe it was noticeable through the pedals. A quick chat with RaceFace suggested that this is by design: initially tight seals take a few rides to bed in and to begin spinning freely. Sure enough, after a couple of hours’ pedaling the bottom bracket was as free-running as any non-ceramic external we’ve felt, and has stayed that way for four (largely dry) months.
Latest Singletrack Merch
Buying and wearing our sustainable merch is another great way to support Singletrack

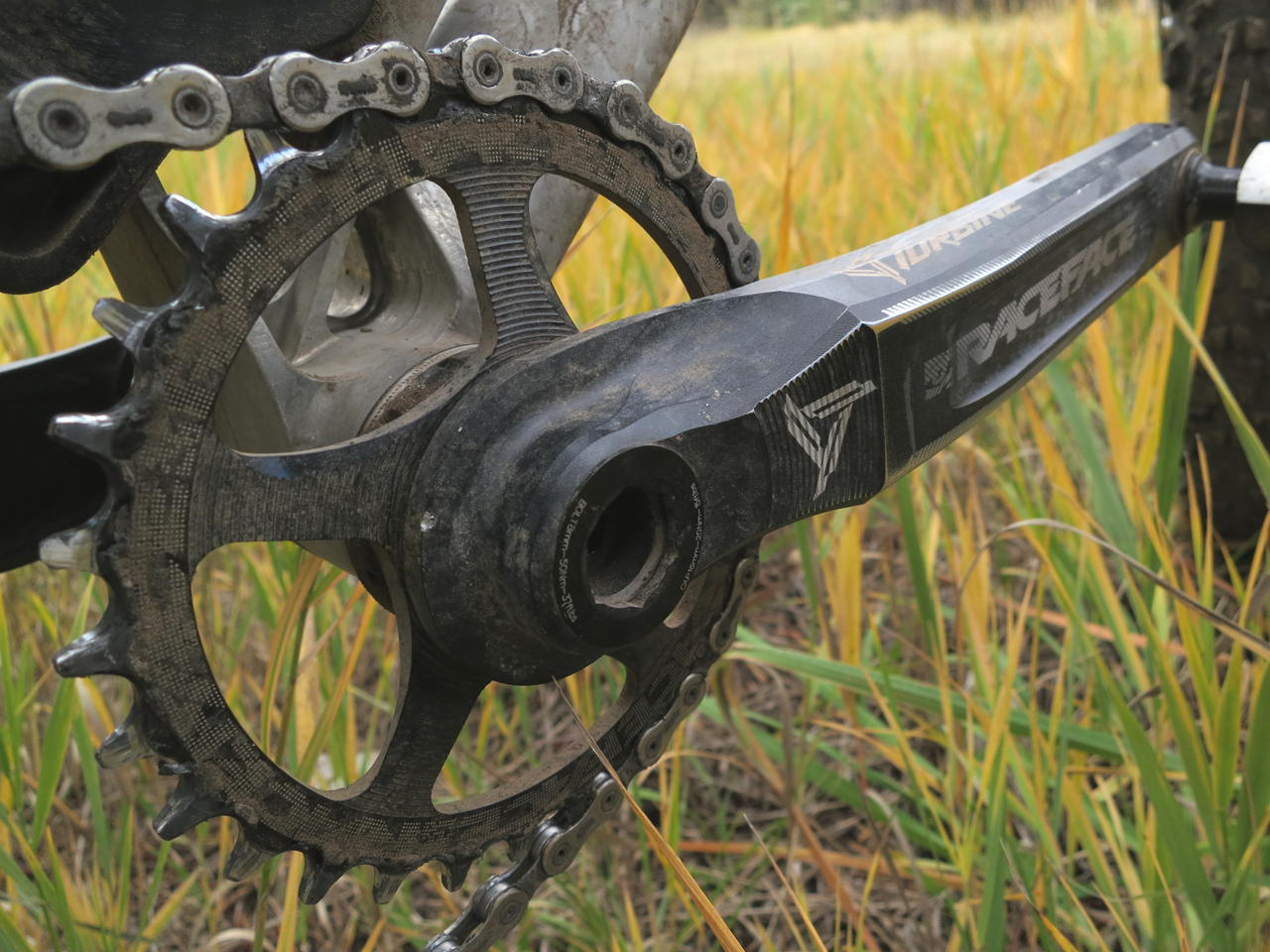

Race Face’s narrow/wide chainrings run smoothly and have yet to drop the chain, so no complaints there. An early squeak was traced to a loose chainring lockring – once corrected, the issue hasn’t returned. (A double-check during installation wouldn’t go amiss.) Unlike other brands, RaceFace chose a right-hand thread for their self-extracting cap- which can loosen when removing cranks. Once tightened and Loctited, this has stayed in place as well.

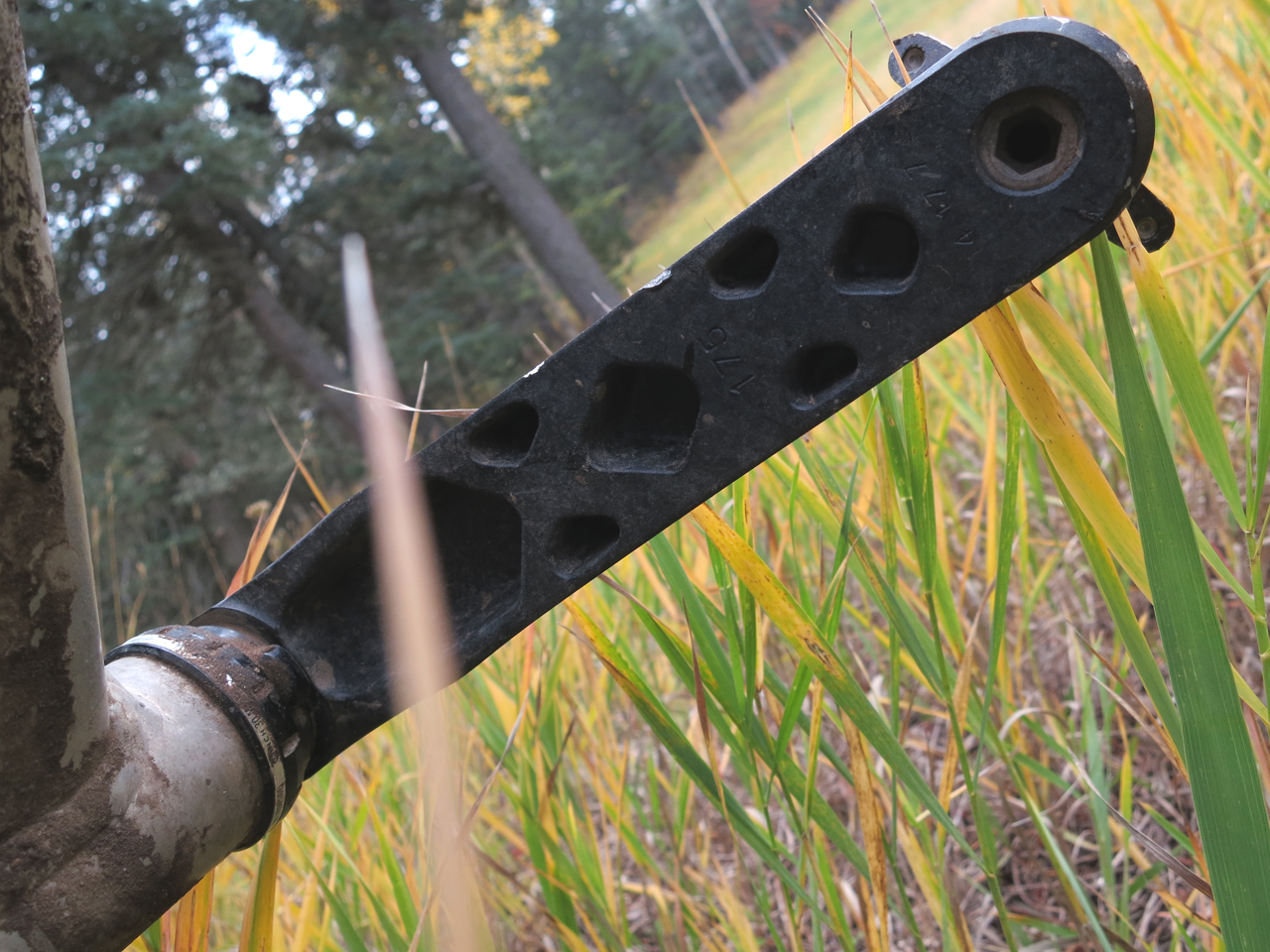

The arms themselves have worn well. Unlike with carbon, rock strikes hardly merit a second thought and the laser etched pattern on their face serves to keep heel-worn arms from looking prematurely tired. Stiffness has been just fine, neither noticeably stiff nor flexible. With the loose hardware addressed, the Turbines have all but disappeared- spinning more smoothly and holding the chain every bit as well as anything else we’ve tried.
Overall: The Turbine Cinch could well be the Shimano SLX of single-ring cranks: Durable, functional, reasonably priced, and reasonably light. Near-universal compatibility is an added bonus. Just be sure to Loctite and properly torque all hardware on installation.
