Add-on sprocket extends Shimano & SRAM cassettes
Part of what makes SRAM’s XX1 and X01 1×11 drivetrains work for everyday use is the massive 10-42t cassette’s 420% gearing spread. By going from teeny-tiny to massive, the cassettes provide 96% of the range provided by the first two ‘rings in a Shimano triple- at a fraction of the complexity, weight, and clatter. Of course, SRAM 11s cassettes are notoriously expensive: the least-expensive option retails for £300/$400 without the required shifter, derailleur, mech, or freehub.

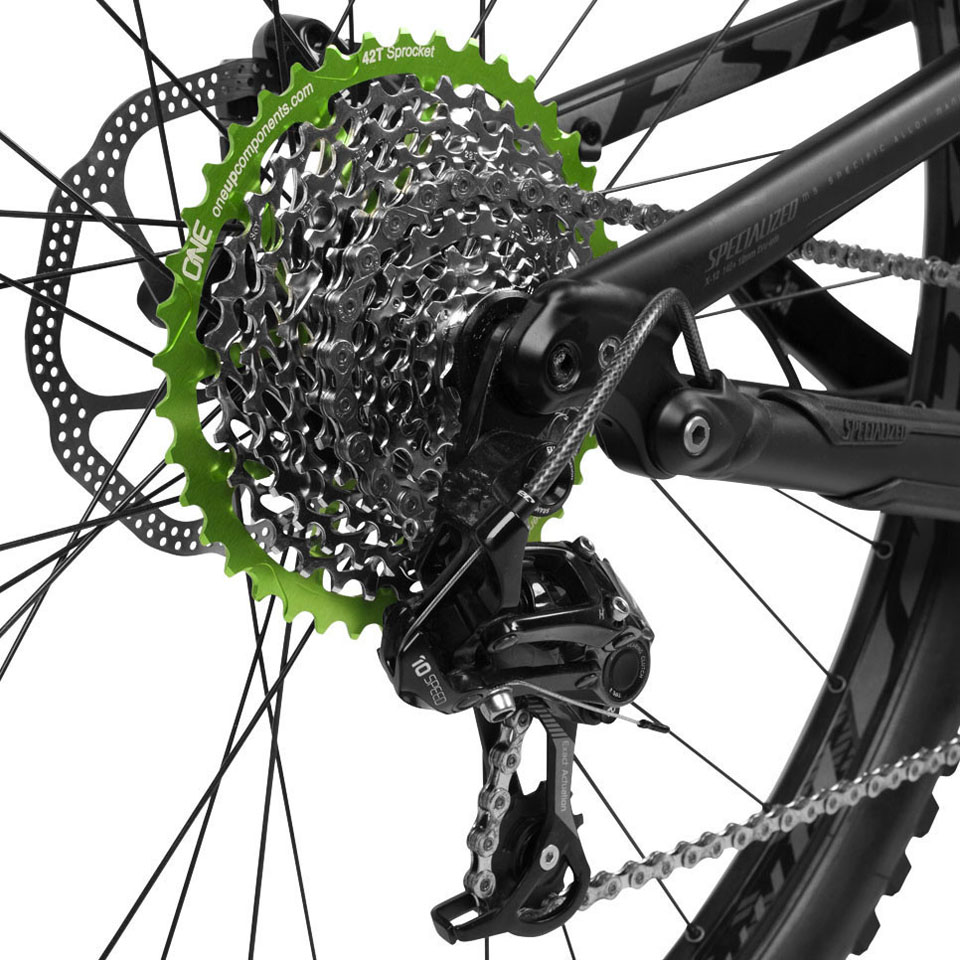

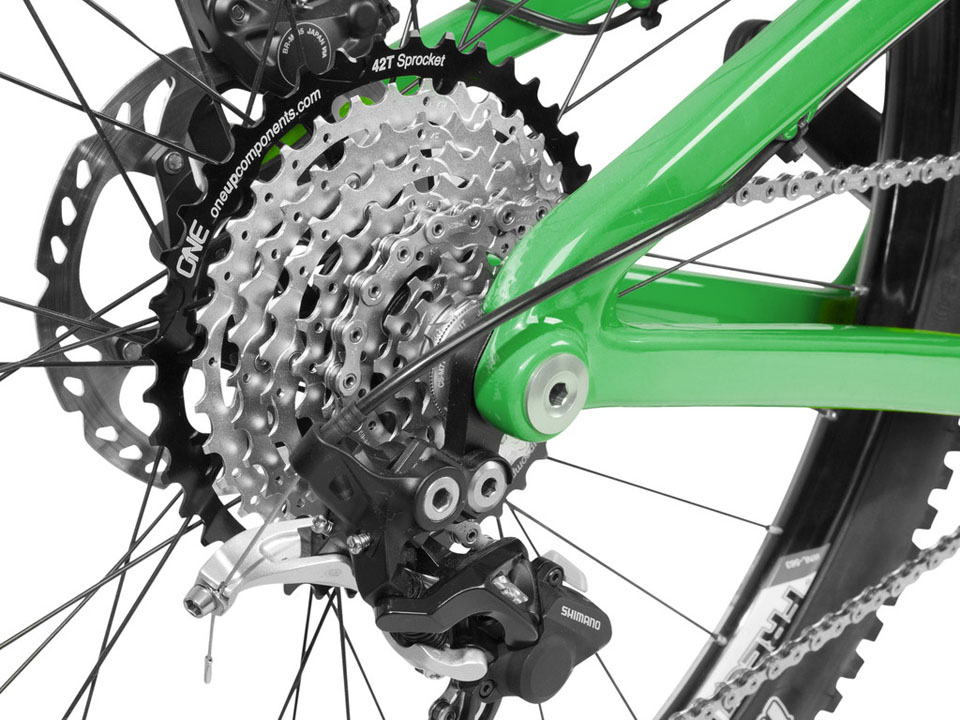

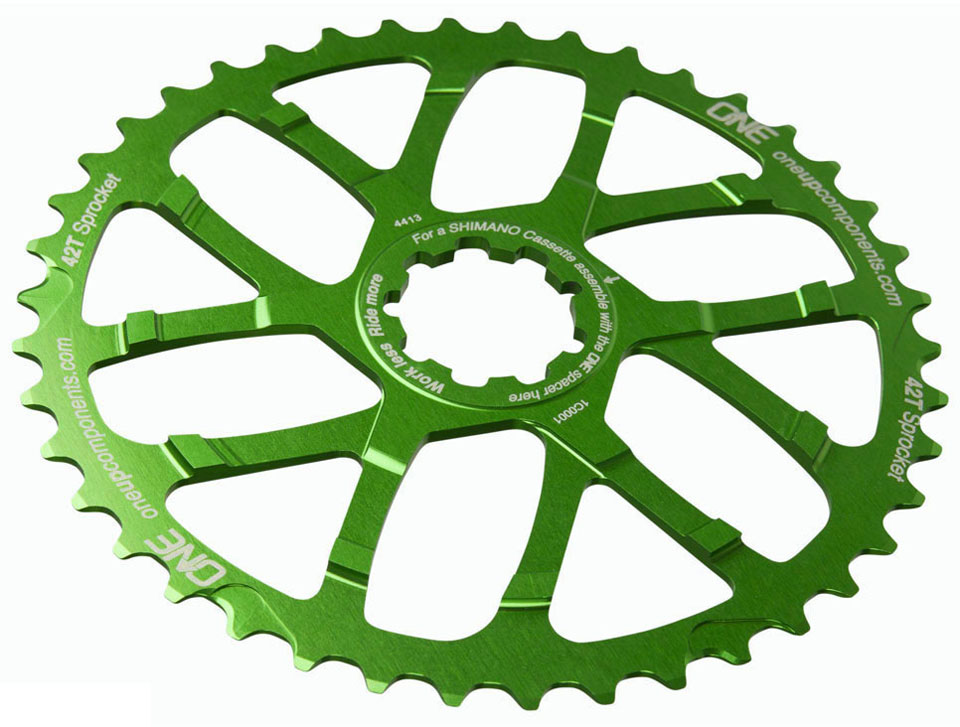

OneUp Components has a solution. Making use of a rider’s existing 10s clutch-type mech, shifters, and cassette, their 42T Sprocket kit sits behind widely available SRAM or Shimano 11-36t cassettes after a mid-block 17t cog and spacer are removed. Crank down the B-tension screw, add a narrow/wide chainring, and shorten the chain and the result is – at least in theory – a 382% gearing range and 367g weight savings at under £100 total. The range is still shy of XX1/X01’s 420%, but a nice bump over most 1×10 setups’ 327% range. Given the price and ability to re-use a modern drivetrain and maintain a standard freehub, it’s hard to complain too loudly.
pull a small cog out.
The jump from 36t to the 42t cog is the same as seen on SRAM 11s cassettes- noticeable but not unbearable. Once the 17t cog is removed, the mid-stack step from 15t to 19t might also be felt- but the system is all about finding an acceptable compromise. OneUp has tested and approved their system for use with XTR, XT, X9, X7, and X5 11-36t cassettes. Only a couple of Roval (Specialized) wheels are known not to work- see the company’s compatibility page for more details.
Latest Singletrack Merch
Buying and wearing our sustainable merch is another great way to support Singletrack
Black is also available.
OneUp’s 42t Sprocket sells for $100 (£61), including shipping anywhere in the world. For the time being, purchasers can exchange their e-mail address for a 15% discount ($85/£52 shipped). For anyone intrigued by single-ring drivetrains but not quite ready to muscle a 11-36 spread ’round the hills, OneUp is presenting what looks to be a promising alternative. Kits ordered now are expected to begin shipping in January.
oneup-components.myshopify.com
Who wants ratios?
| Chainring | 32 | 32 | 32 | 24-32 | 26-38 | 24-36 | 26-39 | 24-32-42 |
| Cassette | 11-36 | OneUp 11-42 | XX1 10-42 | 11-36 | 11-36 | 11-36 | 11-36 | 11-36 |
| Max | 2.91 | 2.91 | 3.20 | 2.91 | 3.45 | 3.27 | 3.55 | 3.82 |
| Min | 0.89 | 0.76 | 0.76 | 0.67 | 0.72 | 0.67 | 0.72 | 0.67 |
| Range | 327% | 382% | 420% | 436% | 478% | 491% | 491% | 573% |
Could this also work on 9 speed too? Can’t remember if they have a cog you could remove?
How do you get the discount? I put in my email address in the checkout and it still came to $100.
Mikey, you need a clutch rear mech really, which don’t come in 9spd.
Leku – You need to email them and you get a auto-reply with a voucher code
I’d be tempted to get a 16t sprocket to replace the 15 and 17 to make that jump smoother. Old Dura Ace CS7900 spares would work and they’re about £4.
Despite the fact that 22/36 on a 29er hurt quite a bit on a big Peak ride at the weekend I’m still tempted by this. I’m bound to not be able to put up with it. I’m probably an idiot then 😉
Any news on when the fabled works components version might appear yet?.
mmm no code yet. Anyone else luckier?
Has anyone fitted one yet, as I can only assume it will make a mess of the freehub body.
Why Squeaky? Looks quite wide where it meets the freehub.
Would you need a long cage mech to take up all that slack in the chain? Or could you get away with a medium cage? The one in the image does look like a medium.
fabled works components – is that a company or shimano?
Any thoughts on whether rather than removing a cog, you could tack it onto the end of a regular 10 speed 11-36 and run it on the XD driver? Effectively giving you an 11-42, 11 speed replacement cassette for less than half the price of an X01. It going to be a different interface/spacing right…
a much cheaper alternative already exists, see http://www.ebay.co.uk/itm/41-Tooth-Cog-Mountain-Bike-Cassette-41t-Sprocket-/261323976497?pt=US_Cassettes_Freewheels_Cogs&hash=item3cd81f6f31
cy turner @ cotic alerted me to this & i’m planning to put it on my (1 x 10) hardtail early next year.
couple of answers to questions posed above:
yes, this will work fine with a medium cage derailleur — the cog range is 31t & from memory a medium cage will handle about 36t or so. my hardtail has a short cage x0 & even that might well work — sram say it can handle a 30t cog range & they’re almost certainly being conservative. @ the worst the chain might be a bit rattley on the smallest cog.
however, no, i don’t think you can get away without losing a cog (presumably the 17t on an 11-36 cassette), coz the stack of cogs would be too long for the freehub.
@kelvin – I *think* you could use a SRAM clutch mech with 9-speed cogs and chain?
Why clutch mech only?
While it’s a lot of money for one sprocket, I reckon this might make more sense than the leoni/ General Lee one as you keep the known durability metal of most of your SRAM/Shimano sprockets, and as it’s bottom gear, it might even last 2 sprockets. But why only green or black? Surely at least plain silver. Tempted to get one though…
I’ve had success with a non clutch 9 speed mech and a wide/narrow chain ring. Works great with no dropping and no chain guides
